10MM EM-OVAL RGHG-CLNT

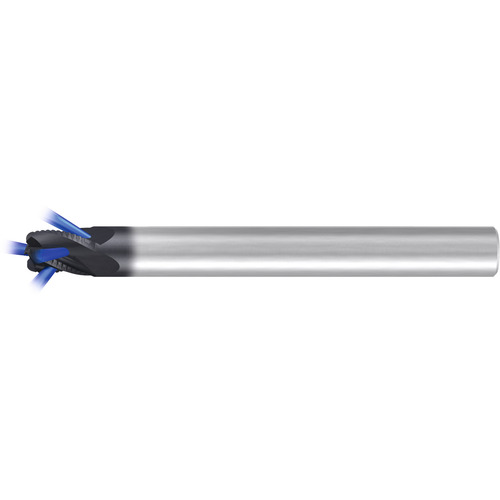

Tapered End Mill; 10 mm Dia. × 12 mm LOC × 95 mm OAL × 10 mm Shank Dia. ; 4 FL ; Carbide ; AlCr
| Applicable Material | | Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Connection Diameter Machine Side (DCONMS) | 10 mm |
| Application | | Roughing | | Coating | AlCr |
| Cutting Diameter (DC) | 10 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 12 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 4 | Shank Type | Round |
| Overall Length (OAL) | 95 mm | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | 3552LZ |
Product Features
| Remarks | • Circle segment carbide end mill in oval form for roughing applications in high-strength materials • Special geometry allows larger line jumps with the same surface quality and time savings of up to 90% • Optimized for pre-machining impellers and IBRs made from aluminum, titanium and Inconel • Radial coolant holes for maximum chip evacuation rates | Country of Origin | Germany |
Shipping Info
Package Weight
0.574
