 3539L/(R) 3539L_Enlarge.jpg)
10MM EM-OVAL-6FL-ALCRN

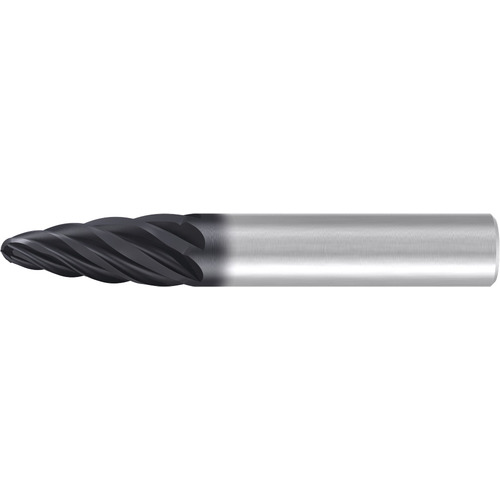

Tapered End Mill; 10 mm Dia. × 26 mm LOC × 72 mm OAL × 10 mm Shank Dia. ; 6 FL ; Carbide ; AlCr
| Applicable Material | | Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Connection Diameter Machine Side (DCONMS) | 10 mm |
| Application | | Finishing | | Coating | AlCr |
| Cutting Diameter (DC) | 10 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 26 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 6 | Shank Type | Round |
| Corner Radius (RE) | 2 mm | Measurement Type | Metric |
| Overall Length (OAL) | 72 mm | Series/List # | 3539L |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Remarks | • Circle segment carbide end mill in oval form for finishing applications in many materials, including high-strength materials • Special geometry allows larger line jumps with the same surface quality and time savings of up to 90% • Low-vibration machining due to variable spacing • ALCR coating for longer tool life and very good suitability for high-alloyed materials | Country of Origin | Germany |
Shipping Info
Package Weight
0.143
