12MM 6F 42.5D TPR FORM A

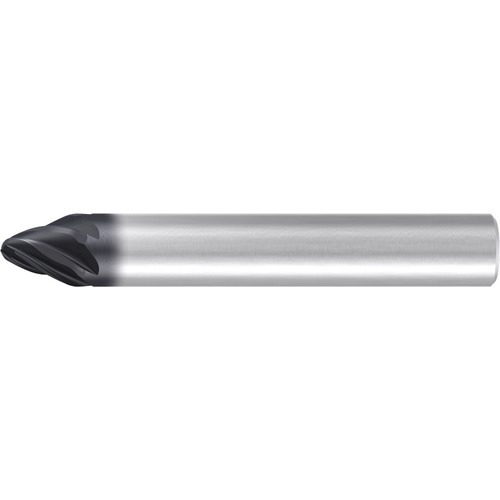

Tapered End Mill; 12 mm Dia. × 8 mm LOC × 93 mm OAL × 12 mm Shank Dia. ; 6 FL ; Carbide ; AlCr ; Series 3541L
| Applicable Material | | Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Connection Diameter Machine Side (DCONMS) | 12 mm |
| Application | | Finishing | | Coating | AlCr |
| Cutting Diameter (DC) | 12 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 8 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 6 | Shank Type | Round |
| Overall Length (OAL) | 93 mm | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 20 Degrees | 30 Degrees | Series/List # | 3541L |
Product Features
| Remarks | • Circle segment carbide end mill in taper form for finishing applications in many materials, hard machining up to 60 HRC possible • Special geometry allows larger line jumps with the same surface quality and time savings of up to 90% compared to a ball nose end mill • In Form A or Form B for different tilt angles in steep or flat areas • High form tolerance of ± 0.01 mm for highest precision | Country of Origin | Germany |
Shipping Info
Package Weight
0.189
