4MM 0.4MM C/R 4D TPR EM

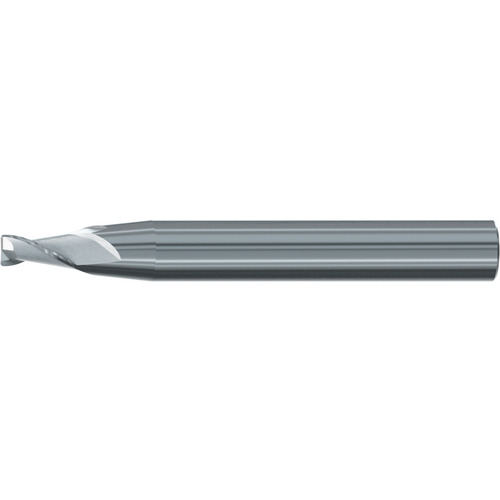

Tapered End Mill; 4 mm Dia. × 8 mm LOC × 63 mm OAL × 8 mm Shank Dia. ; 2 FL ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | | Body Half Taper Angle (BHTA) | 4 Degrees |
| Application | | Finishing | | Coating | Uncoated |
| Cutting Diameter (DC) | 4 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 8 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Shank Type | Round |
| Overall Length (OAL) | 63 mm | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | 3444 |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
Product Features
| Remarks | • Turbine tapered carbide torus end mill for roughing applications in aluminum alloys and plastics • Design with two flutes and various taper angles • Ideal for pre-machining turbine components or other complex 5-axis components | Country of Origin | Germany |
Shipping Info
Package Weight
.077
