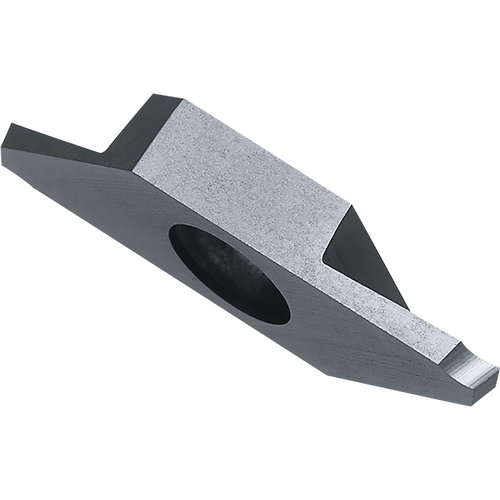

TKF 16L150S16DR KW10
Parting Off Insert; 1.5 mm CW × 4 mm Thickness × 0.05 mm Corner Radius ; Left Hand ; Carbide ; Uncoated ; KW10 ; Series KTKF

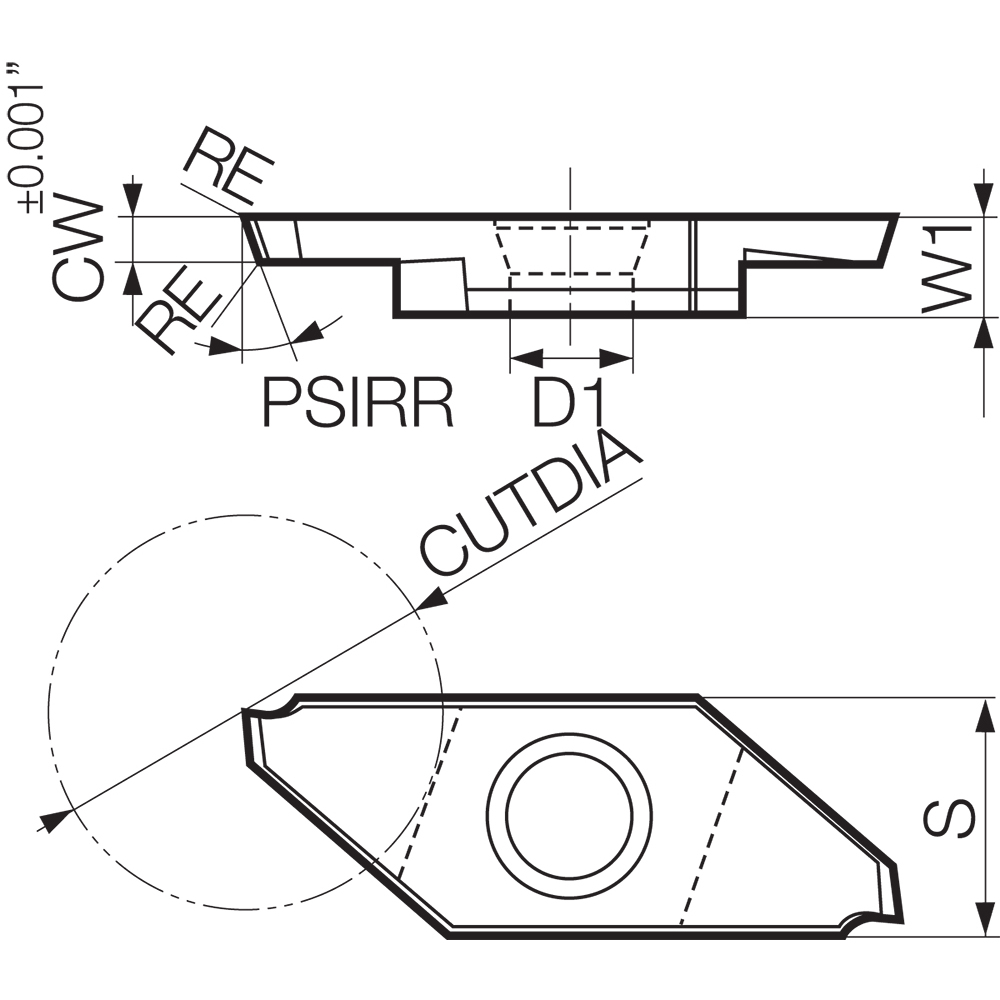

| Cutting Width (CW) | 1.5 mm | Chip Breaker Type | S |
| Corner Radius (RE) | 0.05 mm | Hole Diameter | 5 mm |
| Insert Thickness (S) | 4 mm | Insert Size | 16 |
| Cutting Depth Maximum (CDX) | 8 mm | Insert Style | TKF |
| Cutting Edge Material | Carbide | Mounting Style | Clamp |
| Coating | Uncoated | Number of Cutting Edges | 2 |
| Grade | KW10 | Series/List # | KTKF |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
| Insert Rake Angle (GAN) | 16 Degrees |
Product Features
| Family Description | Alternate Manufacture # TKF16L150S16DRKW10 | Country of Origin | Japan |
Shipping Info
Package Weight
.1967
