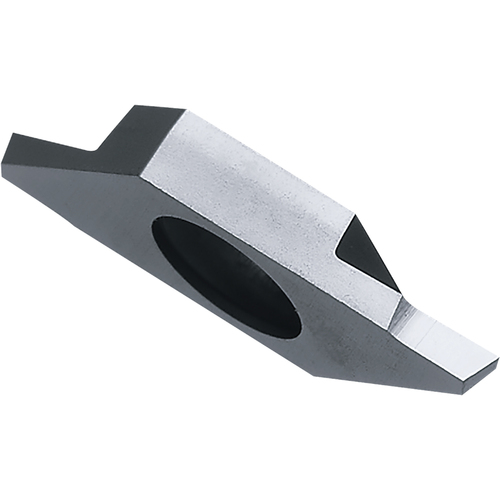

TKF 12L050NB20DR KW10
Parting Off Insert; 0.5 mm CW × 3 mm Thickness × 0 mm Corner Radius ; Left Hand ; Carbide ; Uncoated ; KW10 ; Series KTKF
| Cutting Width (CW) | 0.5 mm | Chip Breaker Type | NB |
| Corner Radius (RE) | 0 mm | Hole Diameter | 5 mm |
| Insert Thickness (S) | 3 mm | Insert Size | 12 |
| Cutting Depth Maximum (CDX) | 2.5 mm | Insert Style | TKF |
| Cutting Edge Material | Carbide | Mounting Style | Clamp |
| Coating | Uncoated | Number of Cutting Edges | 2 |
| Grade | KW10 | Series/List # | KTKF |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
| Insert Rake Angle (GAN) | 20 Degrees |
Product Features
| Family Description | Alternate Manufacture # TKF12L050NB20DRKW10 | Country of Origin | Japan |
Shipping Info
Package Weight
.1195
