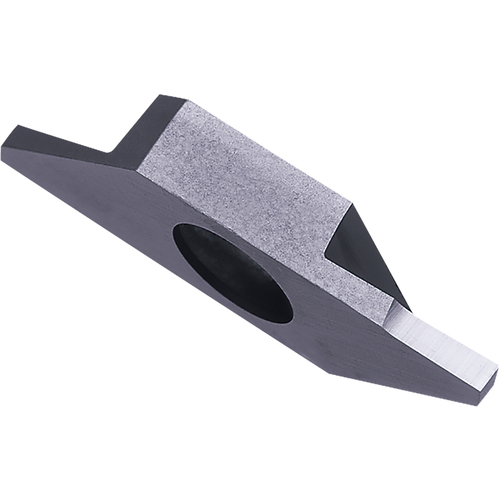

TKF 16L200NB PR1535 INSRT
Parting Off Insert; 2 mm CW × 4 mm Thickness × 0 mm Corner Radius ; Left Hand ; Carbide ; MEGACOAT NANO ; PR1535 ; Series KTKF

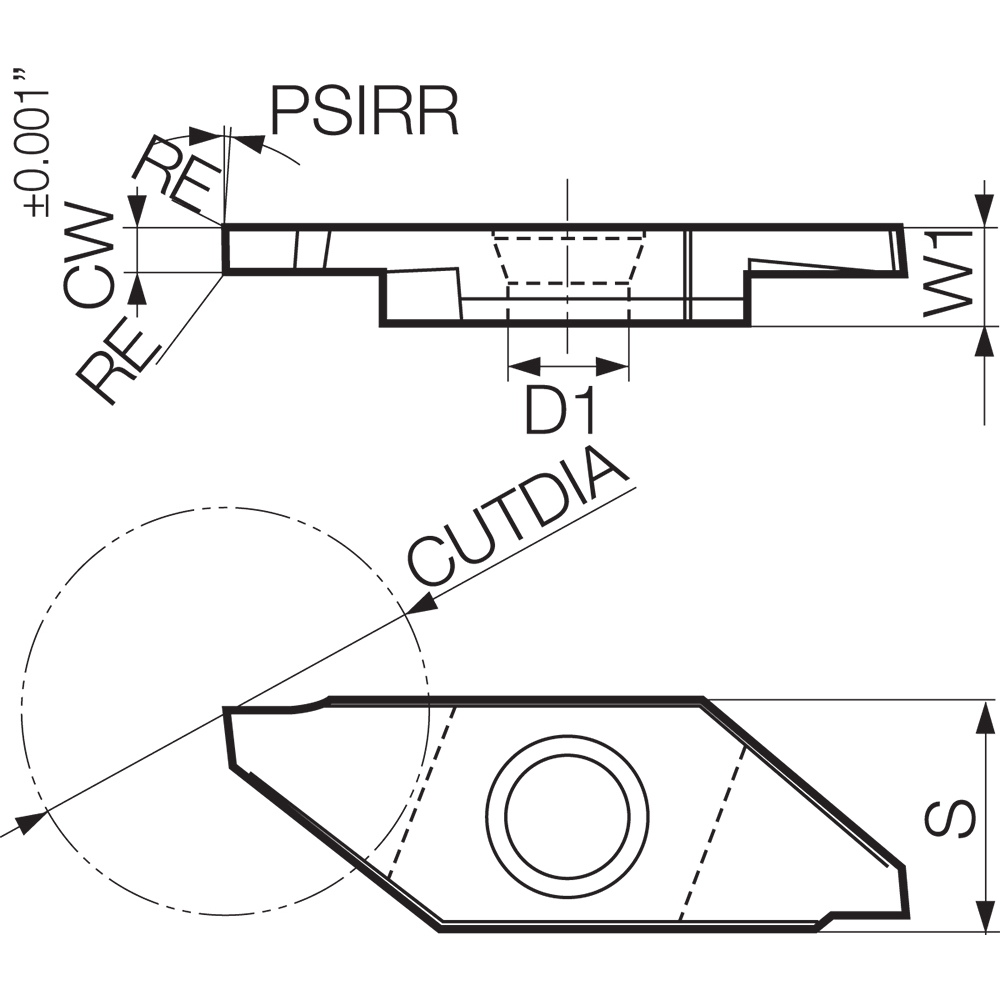

| Cutting Width (CW) | 2 mm | Chip Breaker Type | NB |
| Corner Radius (RE) | 0 mm | Hole Diameter | 5 mm |
| Insert Thickness (S) | 4 mm | Insert Size | 16 |
| Cutting Depth Maximum (CDX) | 8 mm | Insert Style | TKF |
| Cutting Edge Material | Carbide | Mounting Style | Clamp |
| Coating | MEGACOAT NANO | Number of Cutting Edges | 2 |
| Grade | PR1535 | Series/List # | KTKF |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
| Insert Rake Angle (GAN) | 0 Degrees |
Product Features
| Family Description | Alternate Manufacture # TKF16L200NBPR1535 | Country of Origin | Japan |
Shipping Info
Package Weight
.2041
