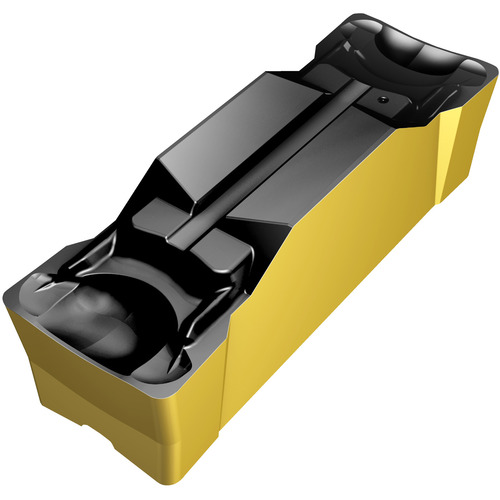

N123G203180003GM 4325
Parting Off Insert; 3.18 mm CW × 19.52 mm Length × 4.3 mm Thickness × 0.3 mm Corner Radius ; Neutral ; Carbide ; | Al2O3 | TiN | TiCN | ; 4325
| Cutting Width (CW) | 3.18 mm | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.3 mm | Applicable Material | | Steel | Cast Iron | |
| Insert Thickness (S) | 4.3 mm | Insert Rake Angle (GAN) | 7 Degrees |
| Insert Length (INSL) | 19.52 mm | Chip Breaker Type | GM |
| Cutting Edge Material | Carbide | Insert Style | N123G2-0318-0003-GM |
| Coating | | Al2O3 | TiN | TiCN | | Tool Type | Grooving Insert |
| Grade | 4325 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
5.00000
Package Width
2.10300
Package Height
.35200
Package Weight
0.126
