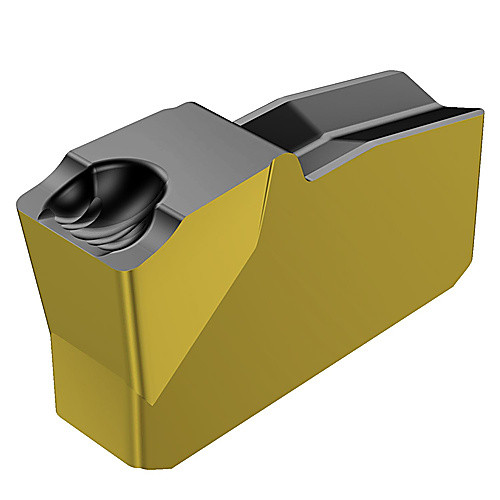

N151.2-300-30-5G 4225 Q-CUT INSERT
Parting Off Insert; 3 mm CW × 5.46 mm Length × 6.79 mm Thickness × 0.3 mm Corner Radius ; Neutral ; Carbide ; | Al2O3 | TiN | TiCN | ; 4225
Additional Tariff Surcharge of 8 %
| Cutting Width (CW) | 3 mm | Grade | 4225 |
| Corner Radius (RE) | 0.3 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 6.79 mm | Applicable Material | | Steel | Cast Iron | |
| Insert Length (INSL) | 5.46 mm | Insert Rake Angle (GAN) | 7 Degrees |
| Cutting Edge Material | Carbide | Insert Style | N151.2-300-30-5G |
| Coating | | Al2O3 | TiN | TiCN | | Tool Type | Grooving Insert |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.06
