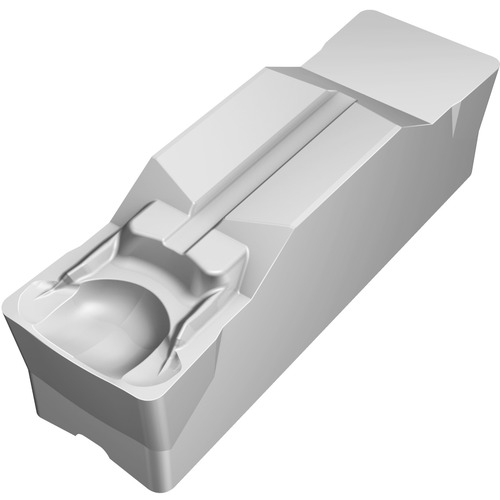

N123M109000008GM H13A
Parting Off Insert; 9 mm CW × 30 mm Length × 7.05 mm Thickness × 0.8 mm Corner Radius ; Neutral ; Carbide ; Uncoated ; H13A
Additional Tariff Surcharge of 8 %
| Cutting Width (CW) | 9 mm | Grade | H13A |
| Corner Radius (RE) | 0.8 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 7.05 mm | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Insert Length (INSL) | 30 mm | Insert Rake Angle (GAN) | 7 Degrees |
| Cutting Edge Material | Carbide | Insert Style | N123M1-0900-0008-GM |
| Coating | Uncoated | Tool Type | Grooving Insert |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.735
