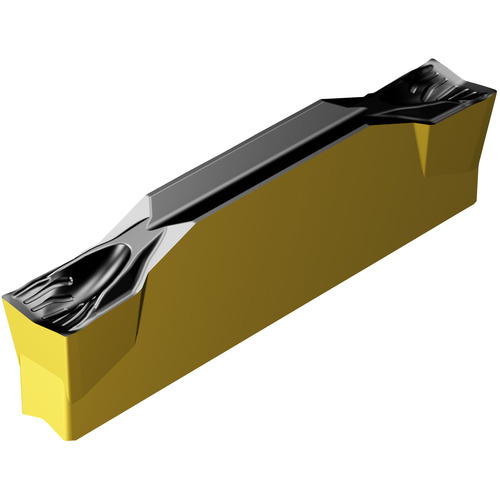

N123F2-0250-0001-CF 4325 COROCUT INSERT
Parting Off Insert; 2.5 mm CW × 19.43 mm Length × 4.3 mm Thickness × 0.1 mm Corner Radius ; Neutral ; Carbide ; | Al2O3 | TiN | TiCN | ; 4325
Additional Tariff Surcharge of 8 %
| Cutting Width (CW) | 2.5 mm | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.1 mm | Applicable Material | | Steel | Cast Iron | |
| Insert Thickness (S) | 4.3 mm | Insert Rake Angle (GAN) | 7 Degrees |
| Insert Length (INSL) | 19.43 mm | Chip Breaker Type | CF |
| Cutting Edge Material | Carbide | Insert Style | N123F2-0250-0001-CF |
| Coating | | Al2O3 | TiN | TiCN | | Tool Type | Cut-Off Insert |
| Grade | 4325 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
.119
