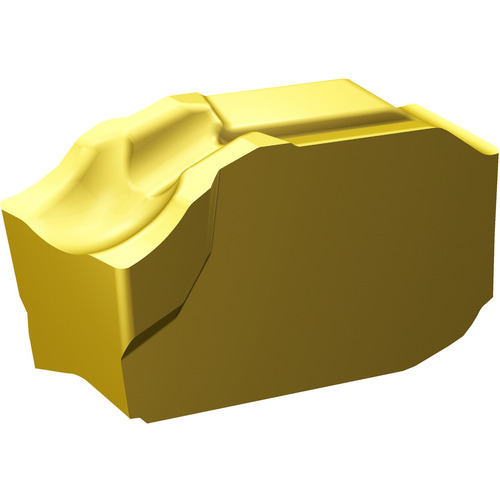

QDLG03000501CO 1135
Parting Off Insert; 3 mm CW × 10 mm Length × 3.1 mm Thickness × 0.1 mm Corner Radius ; Left Hand ; Carbide ; | Al2O3 | TiN | TiCN | ; 1135
Additional Tariff Surcharge of 8 %
| Cutting Width (CW) | 3 mm | Grade | 1135 |
| Corner Radius (RE) | 0.1 mm | Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 3.1 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Insert Length (INSL) | 10 mm | Insert Rake Angle (GAN) | 7 Degrees |
| Cutting Edge Material | Carbide | Insert Style | QD-LG-0300-0501-CO |
| Coating | | Al2O3 | TiN | TiCN | | Tool Type | Cut-Off Insert |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.071
