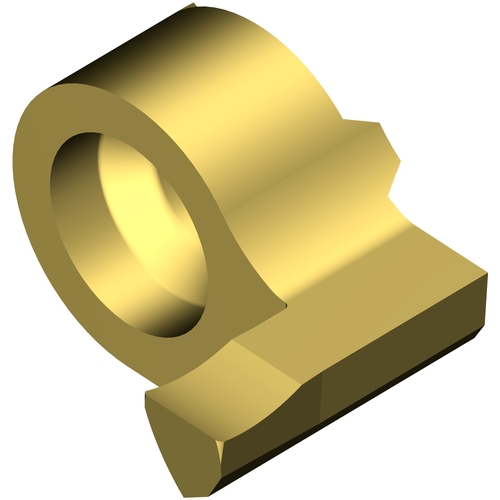

MB-09FB300-02-14R 1025 Corocut MB Insert
Parting Off Insert; 3 mm CW × 10.3 mm Length × 0.2 mm Corner Radius ; Right Hand ; Carbide ; TiAlN ; 1025
Additional Tariff Surcharge of 8 %
| Cutting Width (CW) | 3 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.2 mm | Cutting Edge Angle Major Left Hand (PSIRL) | 2 Degrees |
| Insert Length (INSL) | 10.3 mm | Insert Style | MB-09FB300-02-14R |
| Cutting Edge Material | Carbide | Tool Type | Grooving Insert|Face Grooving Head |
| Coating | TiAlN | Minimum Bore Diameter (DMIN) | 0.472″ |
| Grade | 1025 | Insert Seat Size Code (SSC) | 09 |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | TURKEY |
Shipping Info
Package Weight
.193
