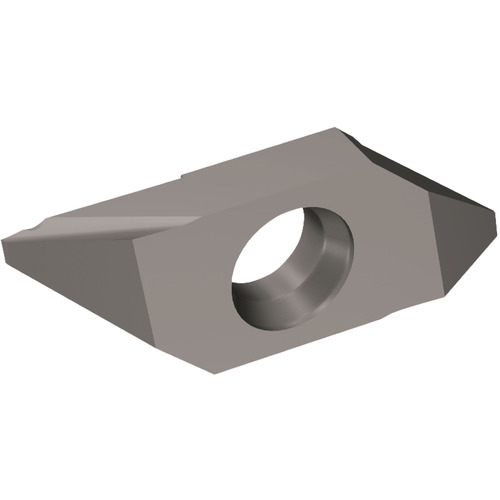

MACL 3 150-R H13A Corocut XS Insert
Parting Off Insert; 1.5 mm CW × 12.02 mm Length × 3.18 mm Thickness × 0.05 mm Corner Radius ; Left Hand ; Carbide ; Uncoated ; H13A
Additional Tariff Surcharge of 8 %
| Cutting Width (CW) | 1.5 mm | Cutting Direction (HAND) | Left Hand |
| Corner Radius (RE) | 0.05 mm | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Insert Thickness (S) | 3.18 mm | Cutting Edge Angle Major Left Hand (PSIRL) | 6 Degrees |
| Insert Length (INSL) | 12.02 mm | Insert Rake Angle (GAN) | 6 Degrees |
| Cutting Edge Material | Carbide | Insert Style | MACL 3 150-R |
| Coating | Uncoated | Tool Type | Cut-Off Insert |
| Grade | H13A |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.101
