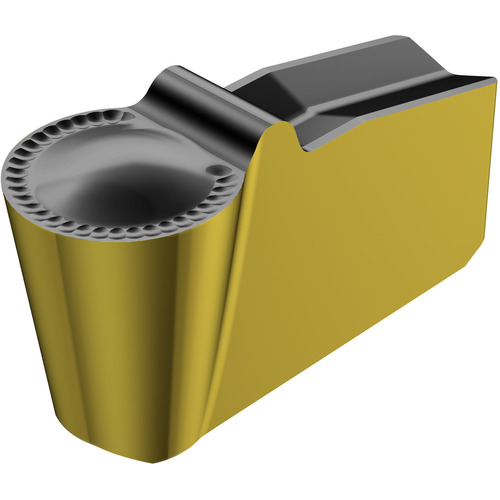

N151.2-A250-50-5P 4225 INSERT
Parting Off Insert; 6.35 mm CW × 7.23 mm Length × 8.11 mm Thickness × 3.18 mm Corner Radius ; Neutral ; Carbide ; | Al2O3 | TiN | TiCN | ; 4225
| Cutting Width (CW) | 6.35 mm | Grade | 4225 |
| Corner Radius (RE) | 3.18 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 8.11 mm | Applicable Material | | Steel | Cast Iron | |
| Insert Length (INSL) | 7.23 mm | Insert Rake Angle (GAN) | 7 Degrees |
| Cutting Edge Material | Carbide | Insert Style | N151.2-A250-50-5P |
| Coating | | Al2O3 | TiN | TiCN | | Tool Type | Turning Insert |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.165
