MACR3150R 1025 INSERT
Parting Off Insert; 0.125″ CW × 12.02 mm Length × 3.18 mm Thickness × 0.05 mm Corner Radius ; Right Hand ; Carbide ; TiAlN ; 1025
Additional Tariff Surcharge of 8 %

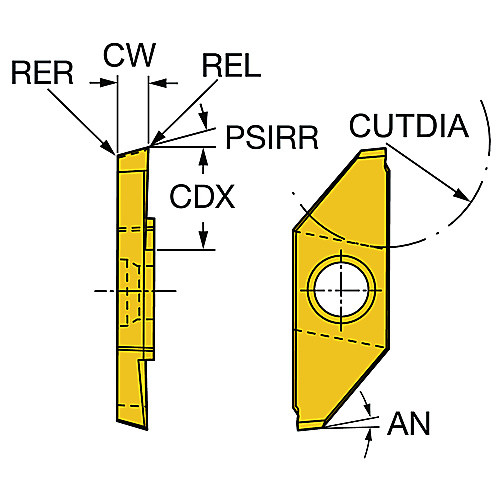

| Cutting Width (CW) | 0.125″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.05 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Insert Thickness (S) | 3.18 mm | Cutting Edge Angle Major Left Hand (PSIRL) | 6 Degrees |
| Insert Length (INSL) | 12.02 mm | Insert Rake Angle (GAN) | 6 Degrees |
| Cutting Depth Maximum (CDX) | 0.472″ | Chip Breaker Type | R |
| Cutting Edge Material | Carbide | Insert Style | MACR 3 150-R |
| Coating | TiAlN | Tool Type | Cut-Off Insert |
| Grade | 1025 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.017
