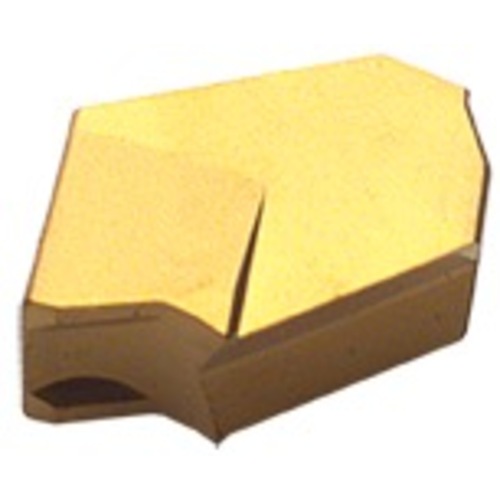

KGTN 3 Grade DC210 - Cut-Off & Grooving Insert
Parting Off Insert; 0.122″ CW ; Neutral ; Carbide ; DC210
| Cutting Width (CW) | 0.122″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Grade | DC210 | Tool Type | Cut-Off and Grooving Insert |
| Shape | 55° Parallelogram |
Product Features
| Remarks | •D-GRIP KGTN/R/LCut-Off and Grooving Inserts •Compare Our Prices and Our Quality for Tremendous Savings •The cutting forces help lock the insert firmly into place and increase the grip on the insert. Removal is possible by using a tool at the back of the insert. The unique chip breaker design of the insert shapes the chips which are narrower than the slot. The system has a cut-off capacity up to 23 diameter. •Notes on Selecting Insert Size1. Use 4° or 8° to reduce burr size. •2. Use KGTN 0° for flatness of surface, chip flow, large depth to width of cut ratio and high feed rate •3. Use 0° or 8° for tubing. •Lead angle:Standard and Neutral 0° Right & Left 8 | Country of Origin | Israel |
Shipping Info
Package Length
.50000
Package Width
.20000
Package Height
.10000
Package Weight
0.002
