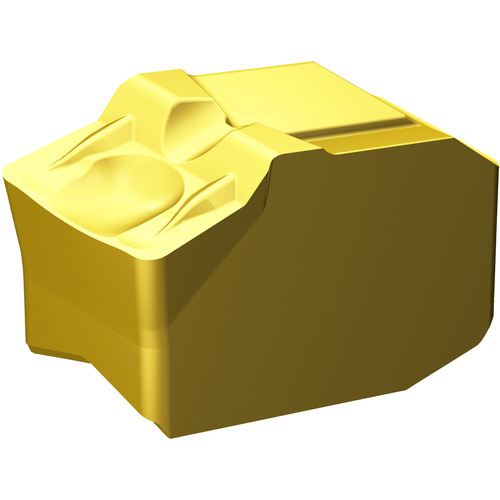

QDNL08000008GM 1135
Parting Off Insert; 8 mm CW × 19 mm Length × 6.5 mm Thickness × 0.8 mm Corner Radius ; Neutral ; Carbide ; | Al2O3 | TiN | TiCN | ; 1135
Additional Tariff Surcharge of 8 %
| Cutting Width (CW) | 8 mm | Grade | 1135 |
| Corner Radius (RE) | 0.8 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 6.5 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Insert Length (INSL) | 19 mm | Insert Rake Angle (GAN) | 7 Degrees |
| Cutting Edge Material | Carbide | Insert Style | QD-NL-0800-0008-GM |
| Coating | | Al2O3 | TiN | TiCN | |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.529
