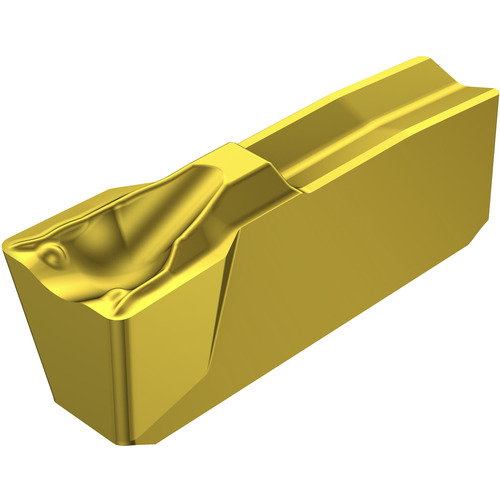

N151.3-500-40-7G 2135 Q-CUT INSERT
Parting Off Insert; 5 mm CW × 6.76 mm Length × 6.11 mm Thickness × 0.4 mm Corner Radius ; Neutral ; Carbide ; | Al2O3 | TiN | TiCN | ; 2135
| Cutting Width (CW) | 5 mm | Grade | 2135 |
| Corner Radius (RE) | 0.4 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 6.11 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Insert Length (INSL) | 6.76 mm | Insert Rake Angle (GAN) | 11 Degrees |
| Cutting Edge Material | Carbide | Insert Style | N151.3-500-40-7G |
| Coating | | Al2O3 | TiN | TiCN | | Tool Type | Grooving Insert |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.086
