QDNG03000003CR 1135

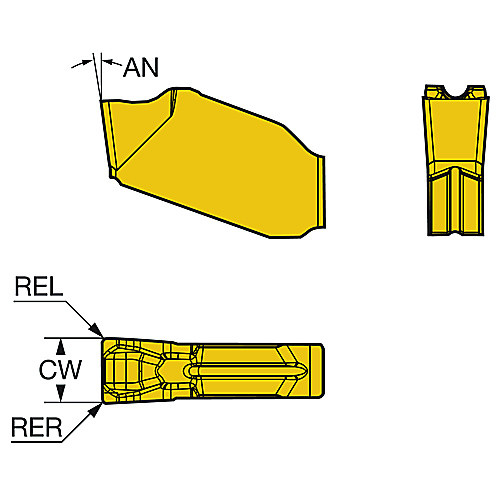

Parting Off Insert; 3 mm CW × 10 mm Length × 3.1 mm Thickness × 0.3 mm Corner Radius ; Neutral ; Carbide ; | Al2O3 | TiN | TiCN | ; 1135
| Cutting Width (CW) | 3 mm | Grade | 1135 |
| Corner Radius (RE) | 0.3 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3.1 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Insert Length (INSL) | 10 mm | Insert Rake Angle (GAN) | 7 Degrees |
| Cutting Edge Material | Carbide | Insert Style | QD-NG-0300-0003-CR |
| Coating | | Al2O3 | TiN | TiCN | | Tool Type | Cut-Off Insert |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.073
