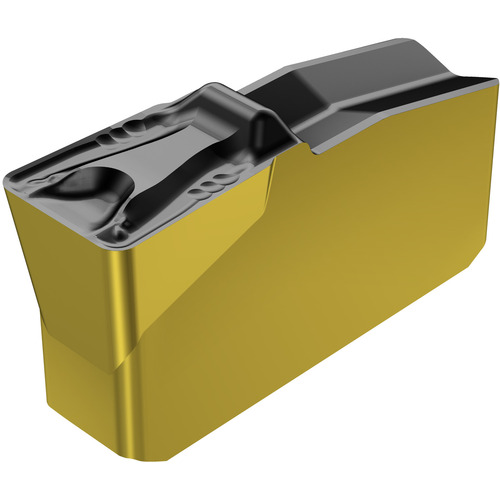

N151.2-500-45-05T 4225 INSERT
Parting Off Insert; 5 mm CW × 8.11 mm Thickness × 0.4 mm Corner Radius ; Neutral ; Carbide ; | Al2O3 | TiN | TiCN | ; 4225
| Cutting Width (CW) | 5 mm | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.4 mm | Applicable Material | | Steel | Cast Iron | |
| Insert Thickness (S) | 8.11 mm | Insert Rake Angle (GAN) | 7 Degrees |
| Cutting Edge Material | Carbide | Insert Style | N151.2-5004-50-5T |
| Coating | | Al2O3 | TiN | TiCN | | Tool Type | Turning Insert |
| Grade | 4225 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.152
