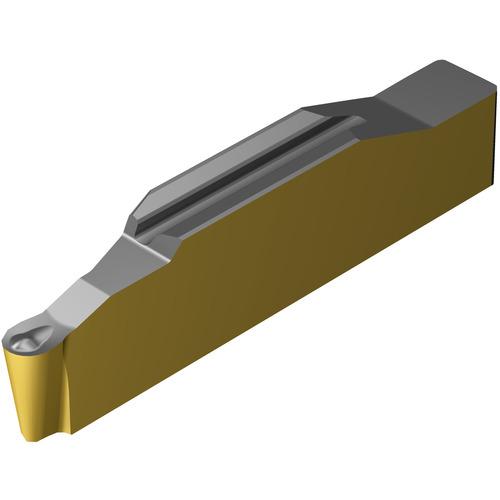

R123H10200RO S205 INSERT
Parting Off Insert; 2 mm CW × 1 mm Corner Radius ; Right Hand ; | Al2O3 | TiN | TiCN | ; S205
Additional Tariff Surcharge of 8 %
| Cutting Width (CW) | 2 mm | Insert Size | H1R 1.5 |
| Corner Radius (RE) | 1 mm | Insert Style | R123 |
| Cutting Depth Maximum (CDX) | 5 mm | Mounting Style | Clamp |
| Coating | | Al2O3 | TiN | TiCN | | Measurement Type | Metric |
| Grade | S205 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Direction (HAND) | Right Hand | Depth of Cut Maximum (APMX) | 0.8 mm |
| Applicable Material | | Super-Alloys / Titanium | | Insert Seat Size Code (SSC) | HR |
| Chip Breaker Type | RO |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.015
