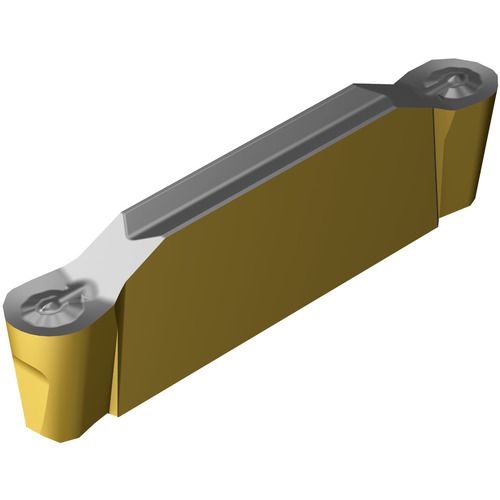

N123H20396RO S205 INSERT
Parting Off Insert; 3.96 mm CW × 1.98 mm Corner Radius ; Neutral ; | Al2O3 | TiN | TiCN | ; S205
Additional Tariff Surcharge of 8 %
| Cutting Width (CW) | 3.96 mm | Insert Size | H2 |
| Corner Radius (RE) | 1.98 mm | Insert Style | N123 |
| Cutting Depth Maximum (CDX) | 23.3 mm | Mounting Style | Clamp |
| Coating | | Al2O3 | TiN | TiCN | | Measurement Type | Metric |
| Grade | S205 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Direction (HAND) | Neutral | Depth of Cut Maximum (APMX) | 1.8 mm |
| Applicable Material | | Super-Alloys / Titanium | | Insert Seat Size Code (SSC) | H |
| Chip Breaker Type | RO |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.19
