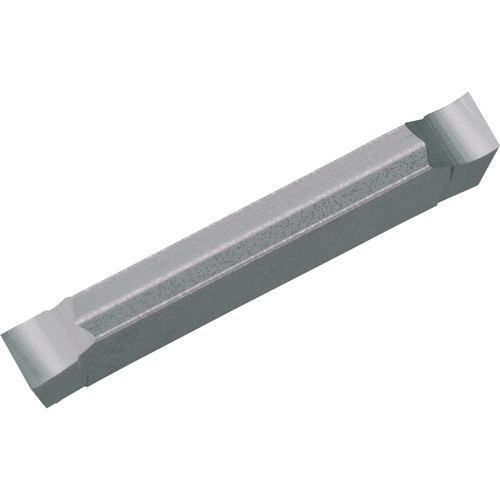

GDG 2520R005PG15D GW15 Grade Uncoated Carbide, Indexable Cut-Off Insert
Parting Off Insert; 2.5 mm CW × 20 mm Length × 4.3 mm Thickness × 0.05 mm Corner Radius ; Right Hand ; Carbide ; Uncoated ; GW15 ; Series KGD

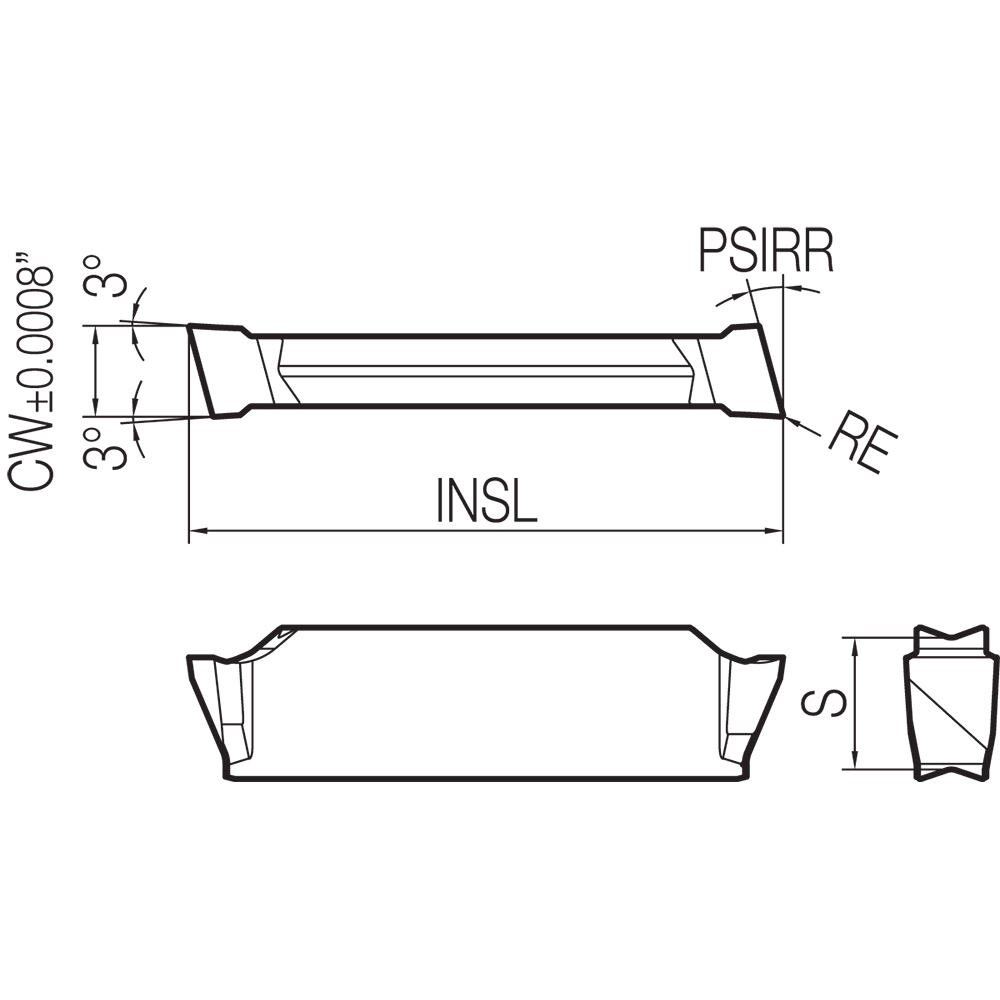

| Cutting Width (CW) | 2.5 mm | Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Corner Radius (RE) | 0.05 mm | Chip Breaker Type | PG |
| Insert Thickness (S) | 4.3 mm | Insert Size | 2520 |
| Insert Length (INSL) | 20 mm | Insert Style | GDG |
| Cutting Edge Material | Carbide | Mounting Style | Clamp |
| Coating | Uncoated | Number of Cutting Edges | 2 |
| Grade | GW15 | Series/List # | KGD |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Application | Cut-Off | Small Parts Machining |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.091
