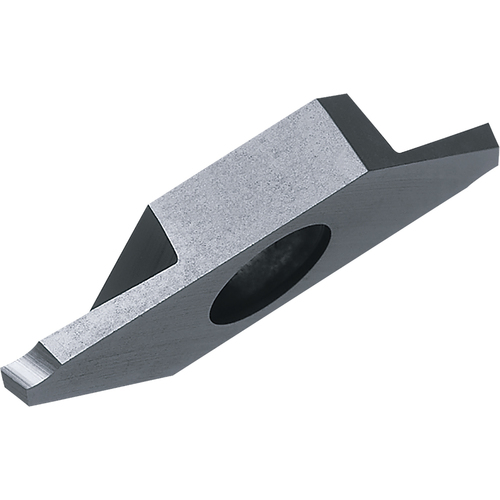

TKF 16R150S16DR KW10 Grade Uncoated Carbide, Indexable Cut-Off Insert
Parting Off Insert; 1.5 mm CW × 9.5 mm Thickness × 0.05 mm Corner Radius ; Right Hand ; Carbide ; Uncoated ; KW10 ; Series KTKF
| Cutting Width (CW) | 1.5 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Corner Radius (RE) | 0.05 mm | Chip Breaker Type | S |
| Insert Thickness (S) | 9.5 mm | Hole Diameter | 5 mm |
| Cutting Depth Maximum (CDX) | 8 mm | Insert Size | 16 |
| Cutting Edge Material | Carbide | Insert Style | TKF |
| Coating | Uncoated | Mounting Style | Screw |
| Grade | KW10 | Number of Cutting Edges | 2 |
| Cutting Direction (HAND) | Right Hand | Series/List # | KTKF |
| Application | Cut-Off | Small Parts Machining | Measurement Type | Metric |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.175
