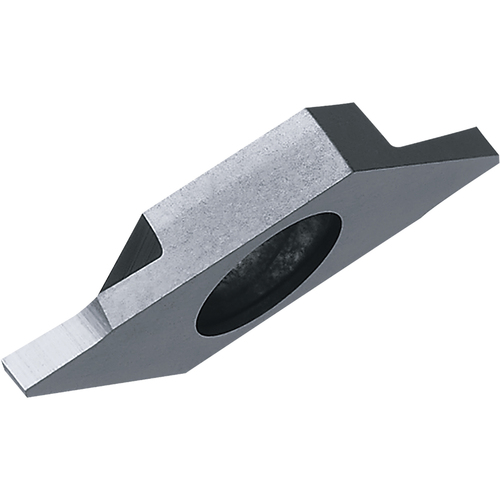

TKF 12R070NB KW10 Grade Uncoated Carbide, Indexable Cut-Off Insert
Parting Off Insert; 0.7 mm CW × 8.7 mm Thickness ; Right Hand ; Carbide ; Uncoated ; KW10 ; Series KTKF

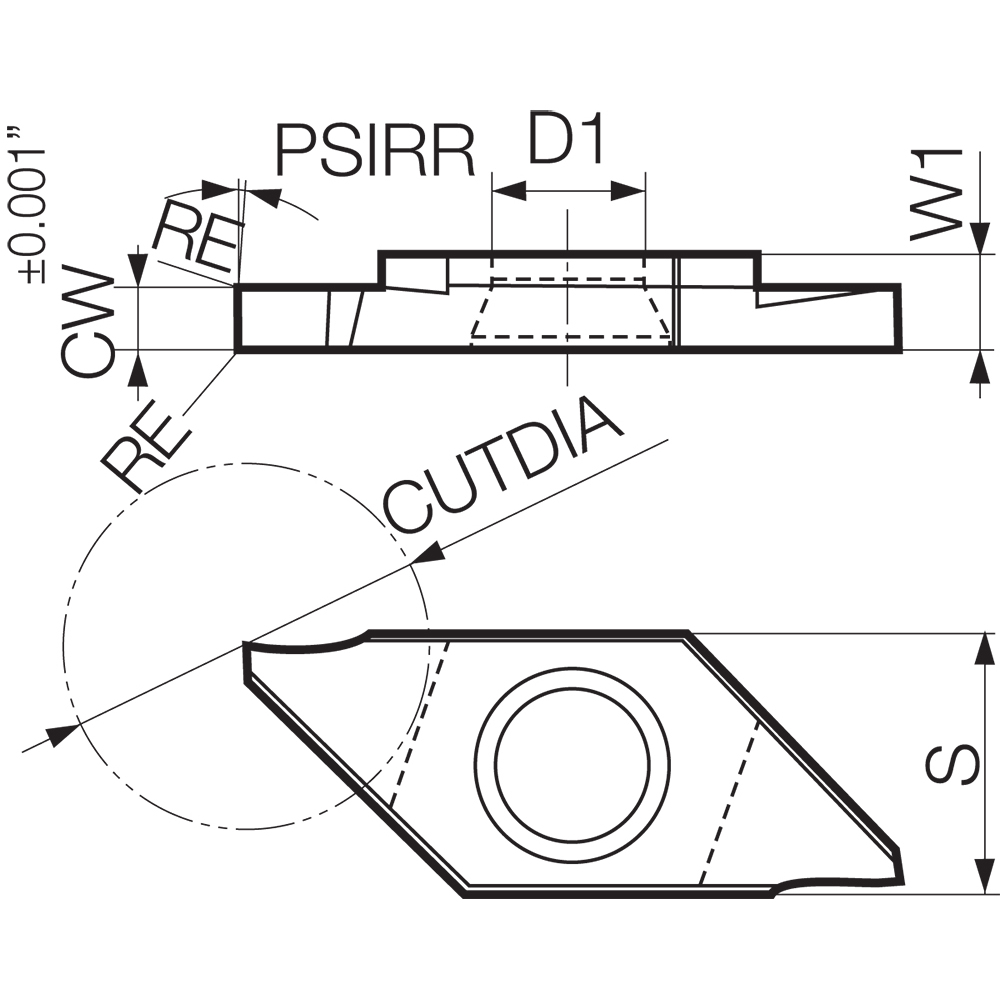

| Cutting Width (CW) | 0.7 mm | Chip Breaker Type | NB |
| Insert Thickness (S) | 8.7 mm | Hole Diameter | 5 mm |
| Cutting Depth Maximum (CDX) | 4 mm | Insert Size | 12 |
| Cutting Edge Material | Carbide | Insert Style | TKF |
| Coating | Uncoated | Mounting Style | Screw |
| Grade | KW10 | Number of Cutting Edges | 2 |
| Cutting Direction (HAND) | Right Hand | Series/List # | KTKF |
| Application | Cut-Off | Small Parts Machining | Measurement Type | Metric |
| Applicable Material | | Aluminum / Non-Ferrous Materials | |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.123
