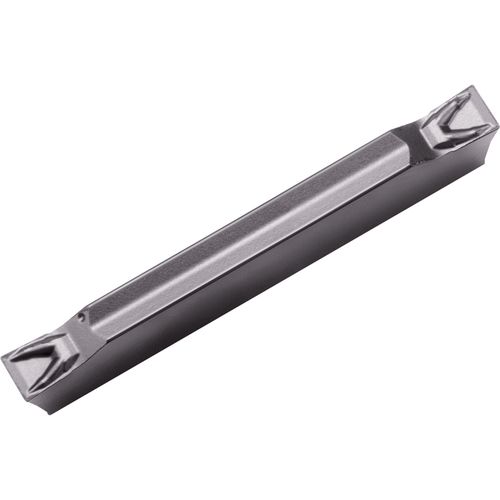

GDM 2520N010PQ PR1535 Grade PVD Carbide, Indexable Cut-Off Insert
Parting Off Insert; 2.5 mm CW × 20 mm Length × 4.3 mm Thickness × 0.1 mm Corner Radius ; Neutral ; Carbide ; MEGACOAT NANO ; PR1535 ; Series KGD

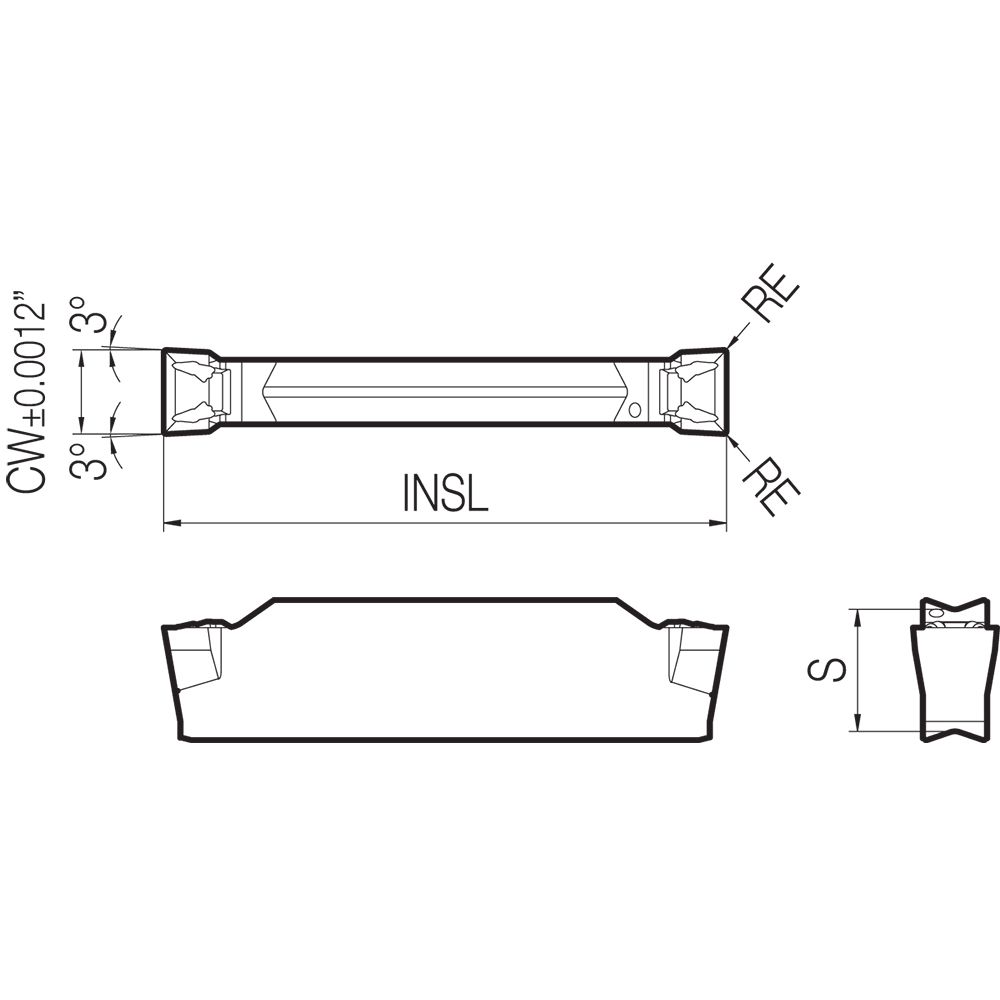

| Cutting Width (CW) | 2.5 mm | Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.1 mm | Chip Breaker Type | PQ |
| Insert Thickness (S) | 4.3 mm | Insert Size | 2520 |
| Insert Length (INSL) | 20 mm | Insert Style | GDM |
| Cutting Edge Material | Carbide | Mounting Style | Clamp |
| Coating | MEGACOAT NANO | Number of Cutting Edges | 2 |
| Grade | PR1535 | Series/List # | KGD |
| Cutting Direction (HAND) | Neutral | Measurement Type | Metric |
| Application | Cut-Off | Small Parts Machining |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.089
