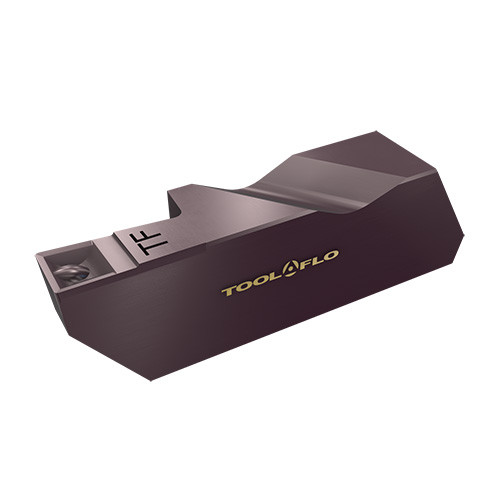

FLFD-3189RI-CB GP50C
| Cutting Width (CW) | 0.189″ | Chip Breaker Type | CB |
| Insert Length (INSL) | 0.505″ | Tool Type | Face Turn-Groove Inserts |
| Corner Radius (RE) | 0.0225″ | Length | 0.505″ |
| Cutting Depth Maximum (CDX) | 0.27″ | Depth of Cut Maximum (APMX) | 0.27″ |
| Insert Thickness Total (S1) | 0.344″ | Max. Face Grooving Feed (ffg(max)) | 0.15 mm/rev |
| Shape | Parrallelogram | Min. Face Grooving Feed (ffg(min)) | 0.1 mm/rev |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Stainless Steel | | Measurement Type | Inch |
| Grade | GP50C | Coating | TiN |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Application | | Int Ext Face Grooving Flo Lock | | Insert Thickness (S) | 0.195″ |
Product Features
| Family Description | Internal Face Deep Grooving #3 Gage FloLock Inserts with Chip Control and Right Hand Clamping Notch | Country of Origin | USA |
