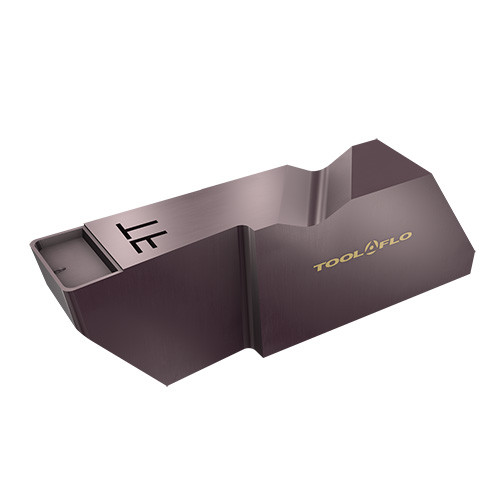

FLFD-4250LI-CB GP50E
| Cutting Width (CW) | 1/4″ | Chip Breaker Type | CB |
| Insert Length (INSL) | 0.886″ | Tool Type | Face Turn-Groove Inserts |
| Corner Radius (RE) | 0.0225″ | Depth of Cut Maximum (APMX) | 0.52″ |
| Cutting Depth Maximum (CDX) | 0.52″ | Max. Face Grooving Feed (ffg(max)) | 0.15 mm/rev |
| Insert Thickness Total (S1) | 0.453″ | Min. Face Grooving Feed (ffg(min)) | 0.1 mm/rev |
| Shape | Parrallelogram | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | | Coating | TiN |
| Grade | GP50E | Body Material | Carbide |
| Cutting Direction (HAND) | Left Hand | Insert Thickness (S) | 0.255″ |
| Application | | Int Ext Face Grooving Flo Lock | |
Product Features
| Family Description | Internal Face Deep Grooving #4 Gage FloLock Inserts with Chip Control and Left Hand Clamping Notch | Country of Origin | USA |
Shipping Info
Package Weight
0.38
