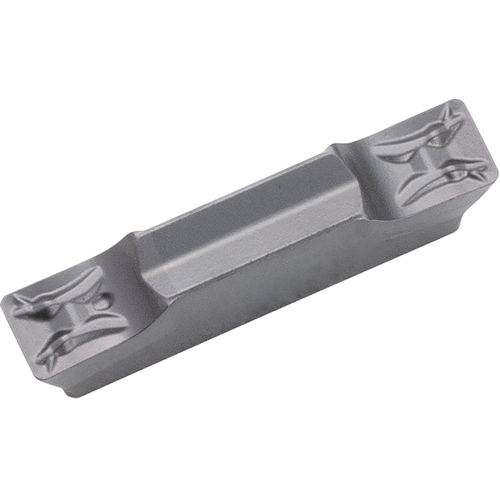

GDM 3015N040GMI TN620 Grade Uncoated Cermet, Indexable Grooving Insert
Grooving Insert; 3 mm CW × 8 mm Max Depth × 4.6 mm Thickness ; Cermet ; TN620 ; TiCN ; Series KGD
| Cutting Width (CW) | 3 mm | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.4 mm | Number of Cutting Edges | 2 |
| Cutting Depth Maximum (CDX) | 8 mm | Chip Breaker Type | GMI |
| Insert Thickness (S) | 4.6 mm | Insert Style | GDM |
| Insert Length (INSL) | 15.5 mm | Number of Teeth | 2 |
| Coating | TiCN | Mounting Style | Clamp |
| Grade | TN620 | Series/List # | KGD |
| Cutting Edge Material | Cermet | Coating Process | Uncoated |
| Application | Internal Grooving | Measurement Type | Metric |
| Applicable Material | | Steel | |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.055
