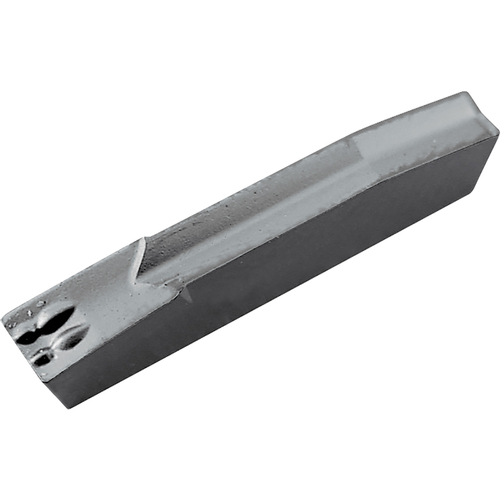

GM R34D TN90 Grade Uncoated Cermet, Indexable Grooving Insert
Grooving Insert; 3 mm CW × 20 mm Max Depth × 4.3 mm Thickness ; Cermet ; TN90 ; Series KGM
| Cutting Width (CW) | 3 mm | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.2 mm | Number of Cutting Edges | 1 |
| Cutting Depth Maximum (CDX) | 20 mm | Chip Breaker Type | D |
| Insert Thickness (S) | 4.3 mm | Insert Style | GM |
| Insert Length (INSL) | 20 mm | Number of Teeth | 1 |
| Grade | TN90 | Mounting Style | Clamp |
| Cutting Edge Material | Cermet | Series/List # | KGM |
| Application | Cut-Off | External Deep Grooving | External Grooving | Coating Process | Uncoated |
| Applicable Material | | Steel | Stainless Steel | | Measurement Type | Metric |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
.058
