GC 08L150010 PR1725 Grade PVD Carbide, Indexable Grooving Insert
Grooving Insert; 1.5 mm CW × 1.5 mm Max Depth × 3.5 mm Thickness ; Carbide ; PR1725 ; MEGACOAT NANO ; Series SIGC

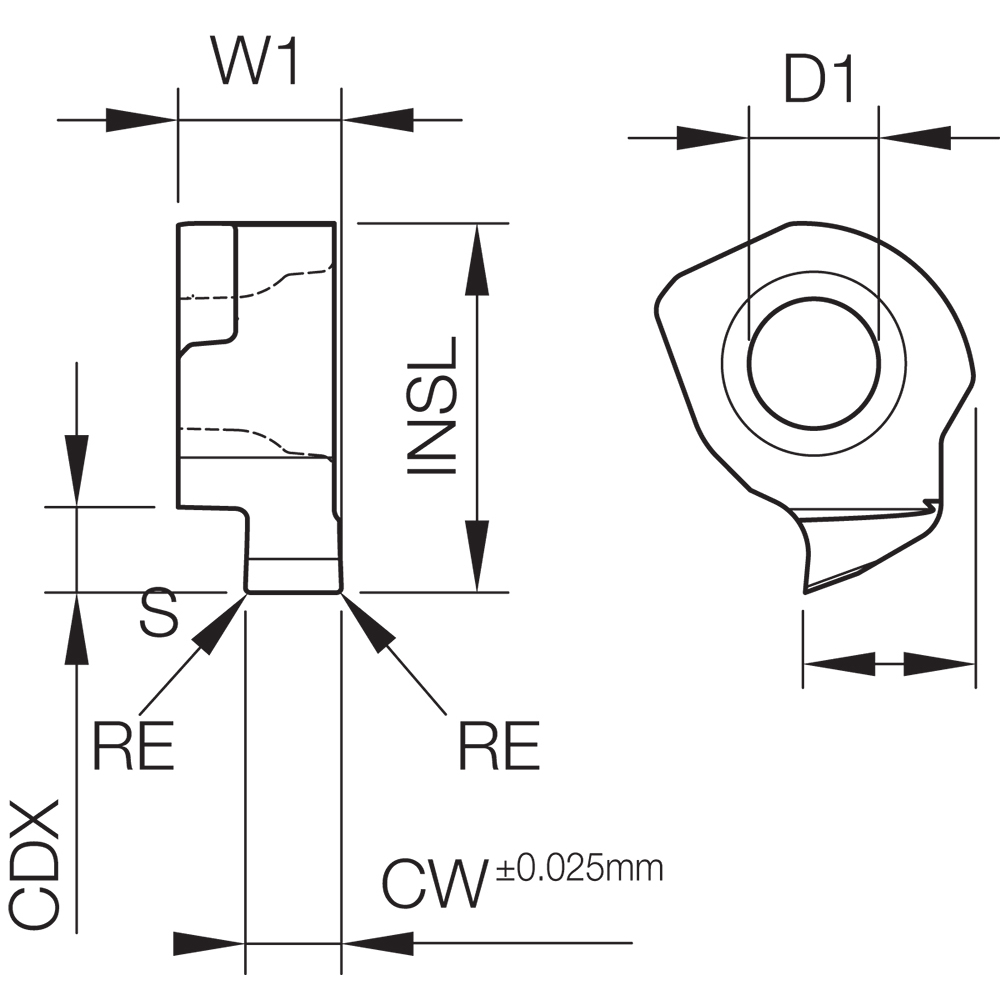

| Cutting Width (CW) | 1.5 mm | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 0.1 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 1.5 mm | Number of Cutting Edges | 1 |
| Insert Thickness (S) | 3.5 mm | Insert Style | GC |
| Insert Length (INSL) | 7.7 mm | Number of Teeth | 1 |
| Fixing Hole Diameter (D1) | 2.7 mm | Mounting Style | Screw | Clamp |
| Coating | MEGACOAT NANO | Series/List # | SIGC |
| Grade | PR1725 | Coating Process | PVD |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Application | Internal Grooving | Small Parts Machining | Insert Width (W1) | 3.4 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.040
