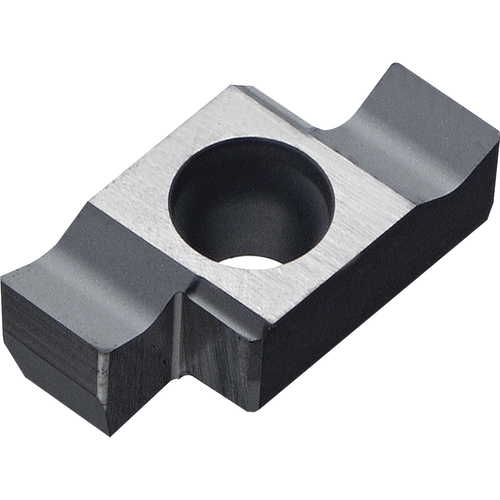

GE R450020E GW15 Grade Uncoated Carbide, Indexable Grooving Insert
Grooving Insert; 4.5 mm CW × 6.5 mm Max Depth × 5.56 mm Thickness ; Carbide ; GW15 ; Uncoated ; Series SIGE

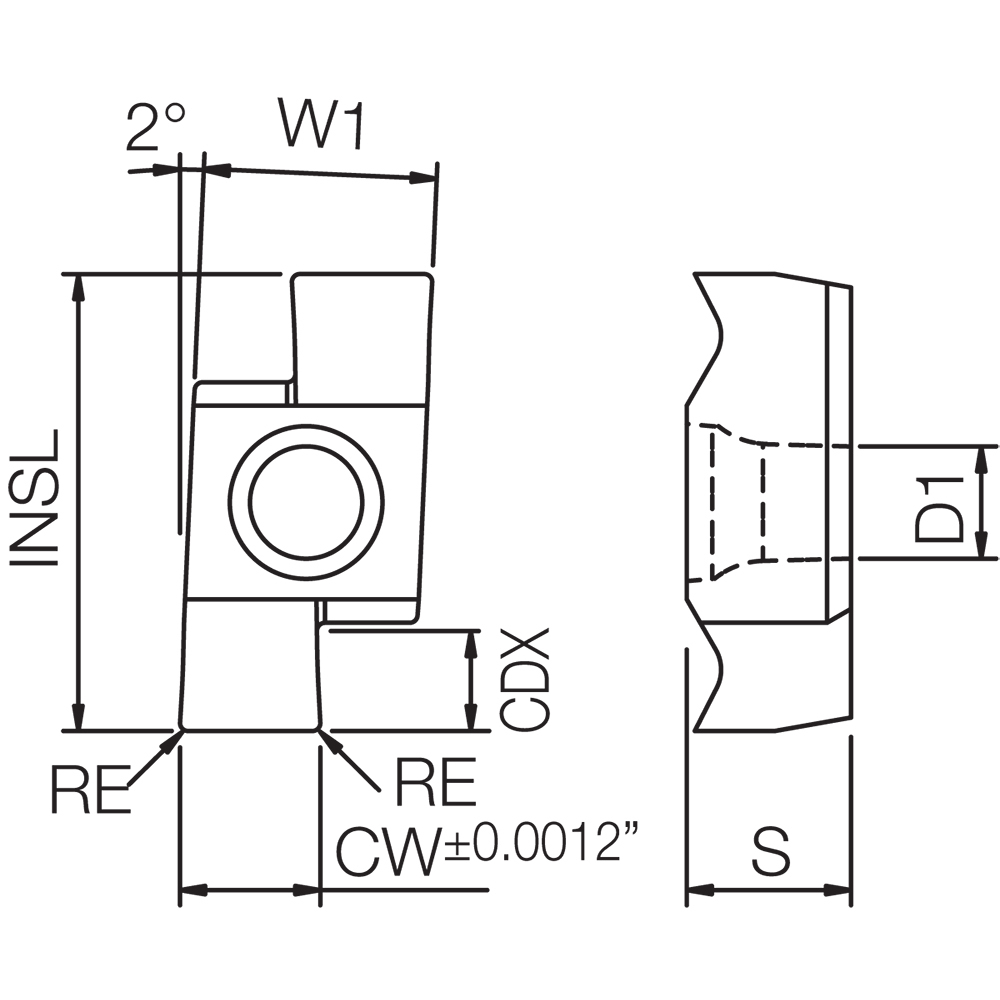

| Cutting Width (CW) | 4.5 mm | Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Corner Radius (RE) | 0.2 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 6.5 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 5.56 mm | Chip Breaker Type | E |
| Insert Length (INSL) | 21.66 mm | Insert Style | GE |
| Fixing Hole Diameter (D1) | 4.4 mm | Number of Teeth | 2 |
| Insert Rake Angle (GAN) | 10 Degrees | Mounting Style | Clamp |
| Coating | Uncoated | Series/List # | SIGE |
| Grade | GW15 | Coating Process | Uncoated |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Application | Internal Grooving | Insert Width (W1) | 9.54 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.222
