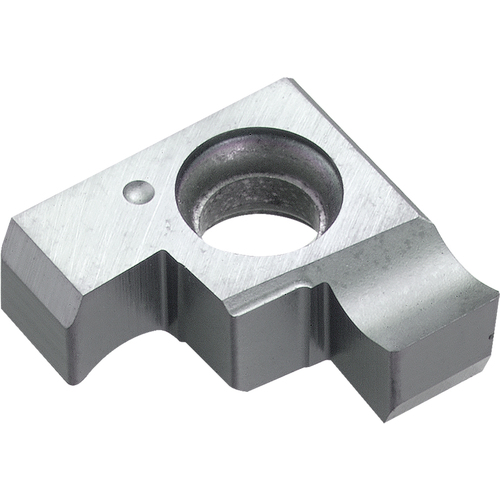

GE L150010A KW10 Grade Uncoated Carbide, Indexable Grooving Insert
Grooving Insert; 1.5 mm CW × 1.5 mm Max Depth × 2.58 mm Thickness ; Carbide ; KW10 ; Uncoated ; Series SIGE
| Cutting Width (CW) | 1.5 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Corner Radius (RE) | 0.1 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 1.5 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 2.58 mm | Chip Breaker Type | A |
| Insert Length (INSL) | 6.5 mm | Insert Style | GE |
| Fixing Hole Diameter (D1) | 2.5 mm | Number of Teeth | 2 |
| Insert Rake Angle (GAN) | 5 Degrees | Mounting Style | Clamp |
| Coating | Uncoated | Series/List # | SIGE |
| Grade | KW10 | Coating Process | Uncoated |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Application | Internal Grooving | Insert Width (W1) | 6.69 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.078
