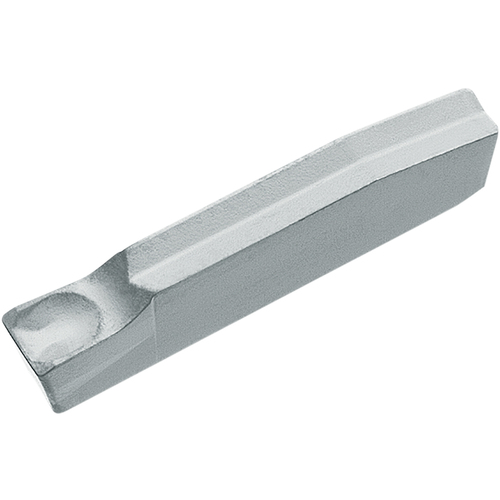

GMN 4TK KW10 Grade Uncoated Carbide, Indexable Grooving Insert
Grooving Insert; 4 mm CW × 25 mm Max Depth × 4.3 mm Thickness ; Carbide ; KW10 ; Uncoated ; Series KGM

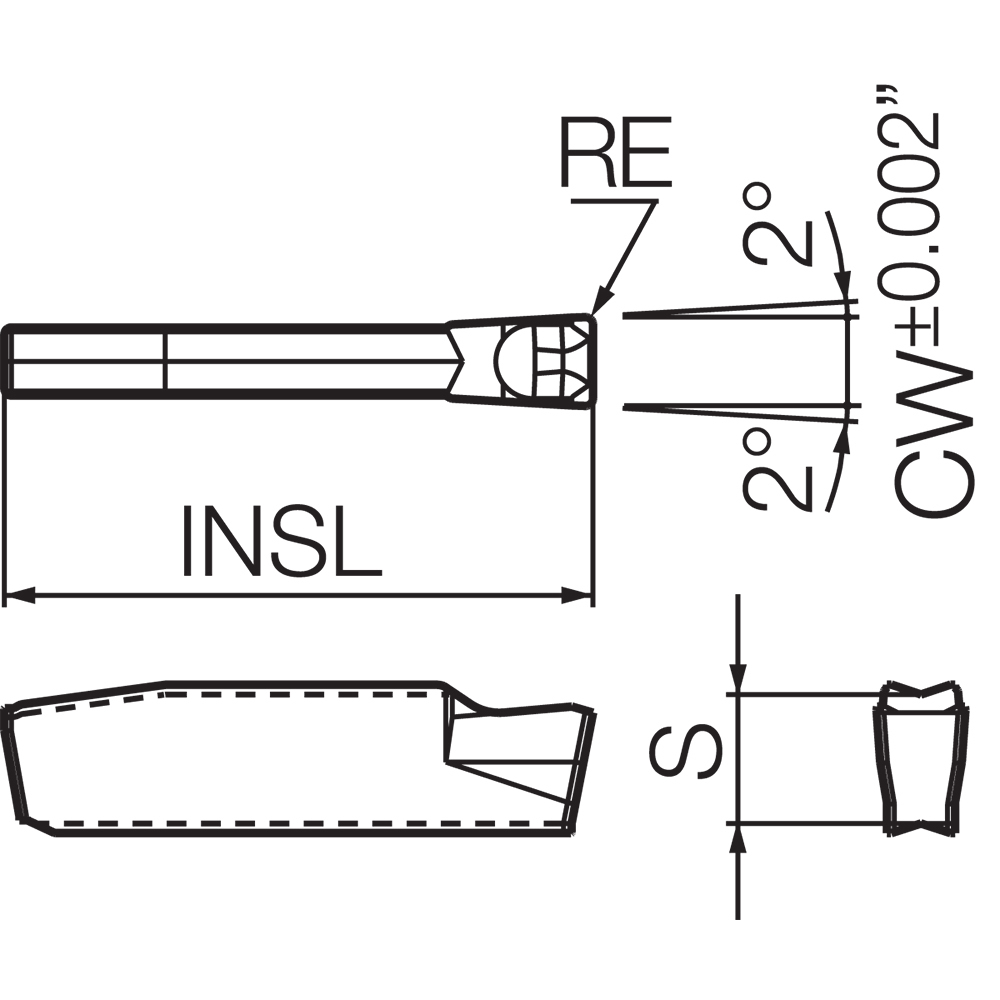

| Cutting Width (CW) | 4 mm | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.3 mm | Number of Cutting Edges | 1 |
| Cutting Depth Maximum (CDX) | 25 mm | Chip Breaker Type | TK |
| Insert Thickness (S) | 4.3 mm | Insert Style | GMN |
| Insert Length (INSL) | 20 mm | Number of Teeth | 1 |
| Coating | Uncoated | Mounting Style | Clamp |
| Grade | KW10 | Series/List # | KGM |
| Cutting Edge Material | Carbide | Coating Process | Uncoated |
| Application | Cut-Off | External Deep Grooving | External Grooving | Measurement Type | Metric |
| Applicable Material | | Aluminum / Non-Ferrous Materials | |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.123
