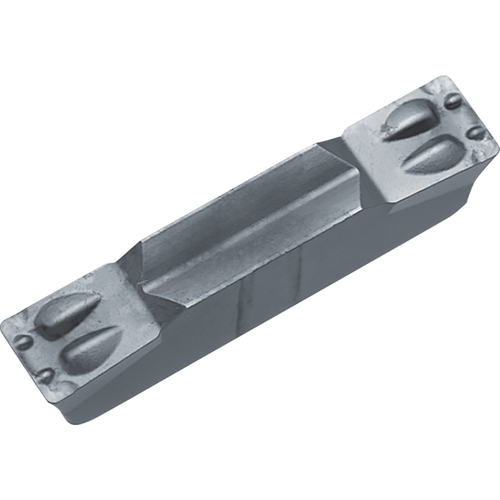

GMM 502008V KW10 Grade Uncoated Carbide, Indexable Grooving Insert
Grooving Insert; GMM 502008V CARBIDE KW10 5 mm CW × 11 mm Max Depth × 4.3 mm Thickness ; Carbide ; WC/Co
| Cutting Width (CW) | 5 mm | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.8 mm | Number of Cutting Edges | 2 |
| Cutting Depth Maximum (CDX) | 11 mm | Chip Breaker Type | V |
| Insert Thickness (S) | 4.3 mm | Insert Style | GMM |
| Insert Length (INSL) | 20 mm | Number of Teeth | 2 |
| Coating | WC/Co | Mounting Style | Clamp |
| Grade | KW10 | Series/List # | KGM |
| Cutting Edge Material | Carbide | Coating Process | Uncoated |
| Application | Internal Grooving | Measurement Type | Metric |
| Applicable Material | Aluminum / Non-Ferrous Materials |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.163
