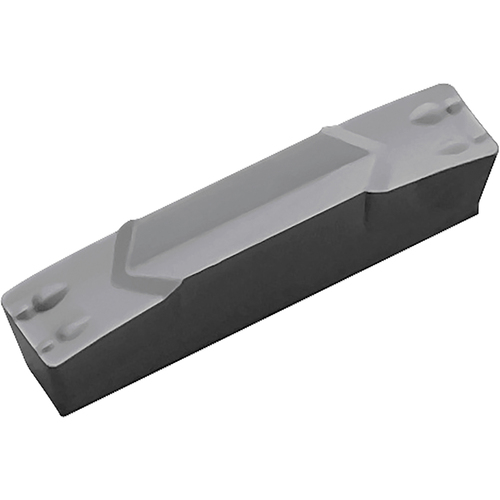

GMM 3020020MW KW10 Grade Uncoated Carbide, Indexable Grooving Insert
Grooving Insert; 3 mm CW × 20 mm Max Depth × 4.3 mm Thickness ; Carbide ; KW10 ; Uncoated ; Series KGM

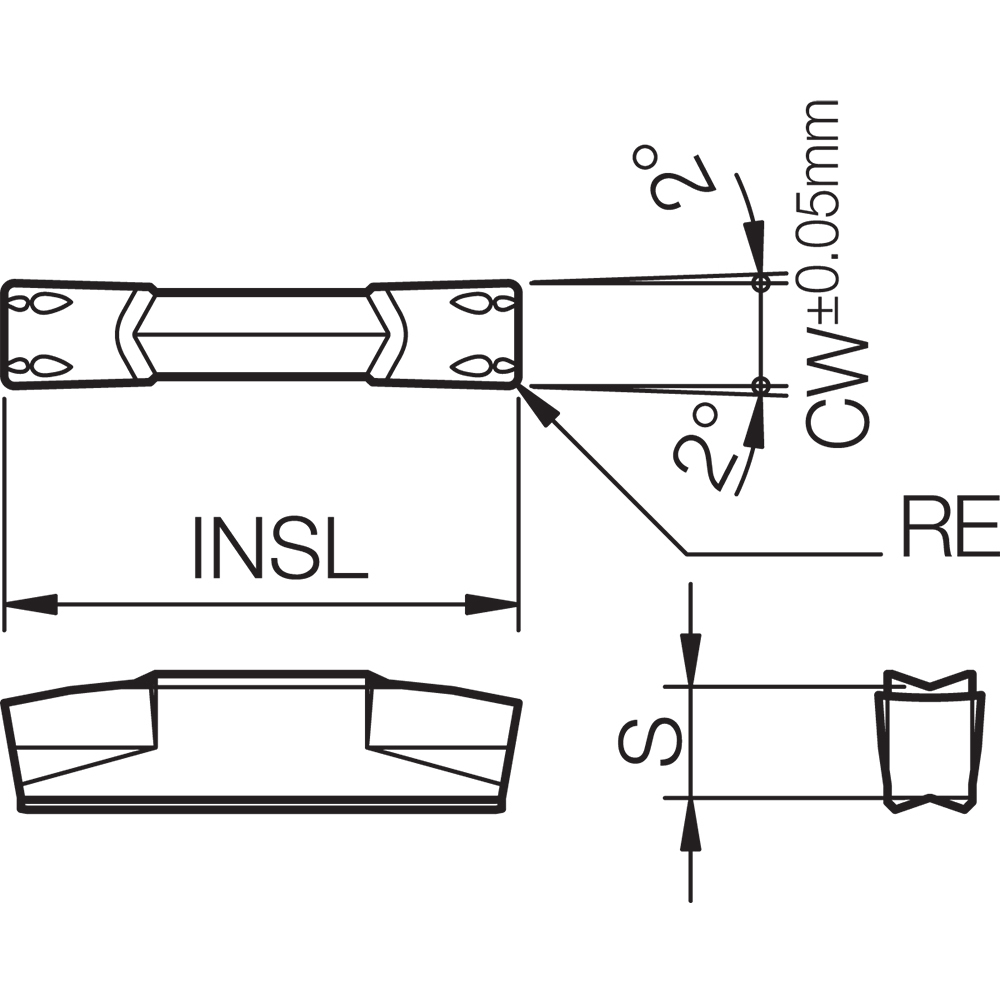

| Cutting Width (CW) | 3 mm | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.2 mm | Number of Cutting Edges | 2 |
| Cutting Depth Maximum (CDX) | 20 mm | Chip Breaker Type | MW |
| Insert Thickness (S) | 4.3 mm | Insert Style | GMM |
| Insert Length (INSL) | 20 mm | Number of Teeth | 2 |
| Coating | Uncoated | Mounting Style | Clamp |
| Grade | KW10 | Series/List # | KGM |
| Cutting Edge Material | Carbide | Coating Process | Uncoated |
| Application | | Ext. Grooving | Traversing | | Measurement Type | Metric |
| Applicable Material | | Aluminum / Non-Ferrous Materials | |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.096
