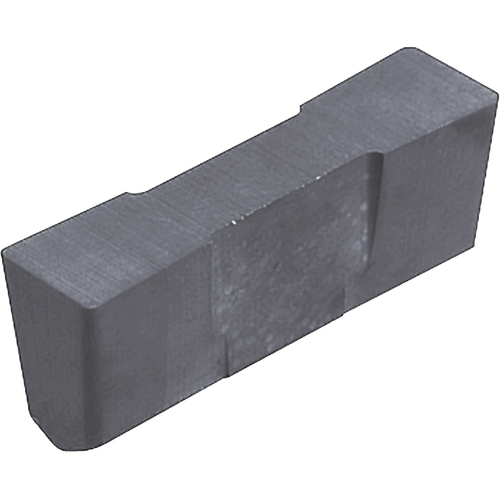

GH 702002 KW10 Grade Uncoated Carbide, Indexable Grooving Insert
Grooving Insert; 7 mm CW × 13 mm Max Depth × 7.5 mm Thickness ; Carbide ; KW10 ; Uncoated ; Series KGH

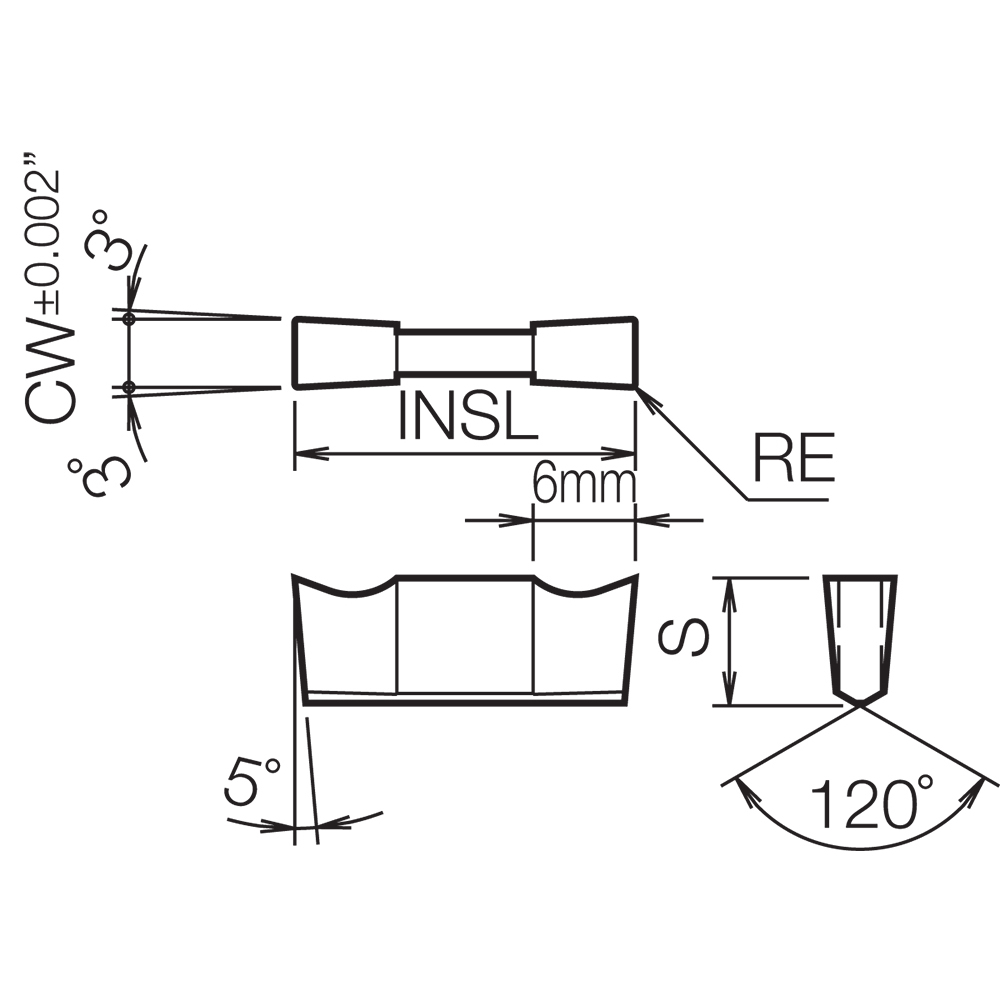

| Cutting Width (CW) | 7 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Corner Radius (RE) | 0.2 mm | Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 13 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 7.5 mm | Insert Style | GH |
| Insert Length (INSL) | 20 mm | Number of Teeth | 2 |
| Insert Rake Angle (GAN) | Positive | Mounting Style | Clamp |
| Coating | Uncoated | Series/List # | KGH |
| Grade | KW10 | Coating Process | Uncoated |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Application | External Deep Grooving | External Grooving | Internal Large Diameter Deep Grooving |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.290
