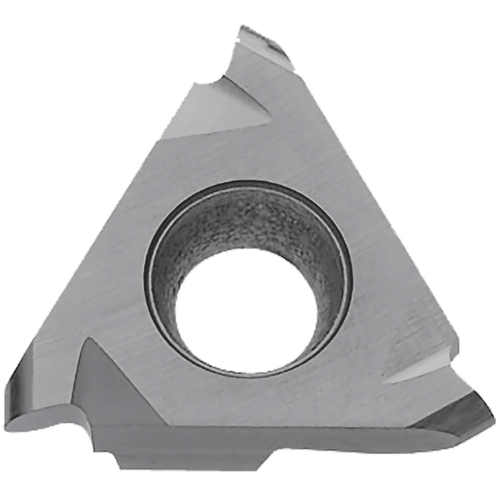

GBA 43L200100RF TN620 Grade Uncoated Cermet, Indexable Grooving Insert
Grooving Insert; 2 mm CW × 3.5 mm Max Depth × 4.76 mm Thickness × 12.7 mm IC ; Cermet ; TN620 ; TiCN ; Series GBA

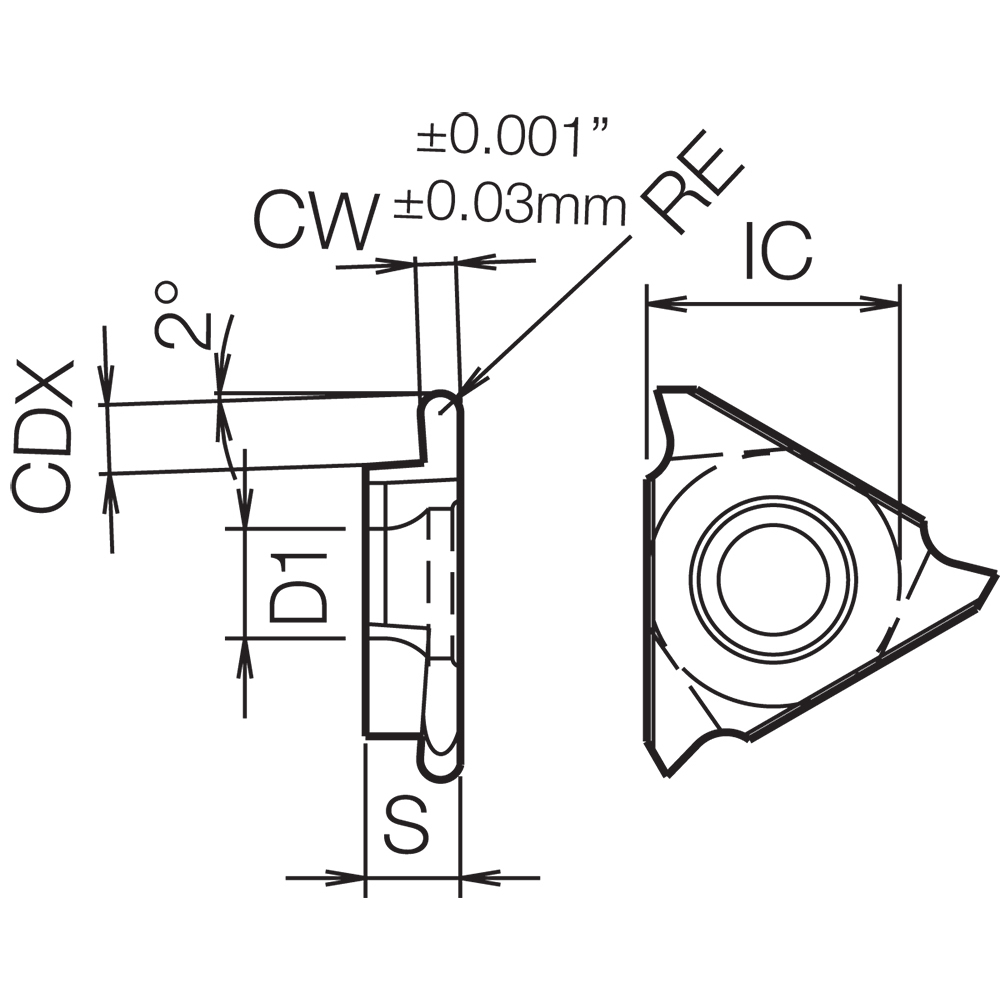

| Cutting Width (CW) | 2 mm | Applicable Material | | Steel | |
| Corner Radius (RE) | 1 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 3.5 mm | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 4.76 mm | Chip Breaker Type | RF |
| Inscribed Circle Diameter (IC) | 12.7 mm | Insert Style | GBA |
| Fixing Hole Diameter (D1) | 5.5 mm | Number of Teeth | 3 |
| Insert Rake Angle (GAN) | Positive | Mounting Style | Screw | Clamp |
| Coating | TiCN | Series/List # | GBA |
| Grade | TN620 | Coating Process | Uncoated |
| Cutting Edge Material | Cermet | Measurement Type | Metric |
| Application | | Ext. Grooving | |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.130
