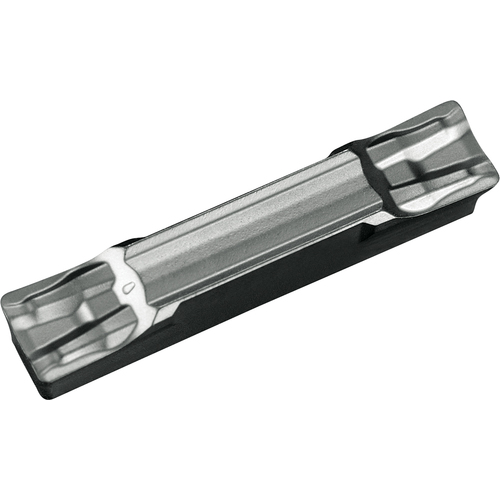

GDFM 3020N030GM TN90 Grade Uncoated Cermet, Indexable Grooving Insert
Grooving Insert; 3 mm CW × 25 mm Max Depth × 4.3 mm Thickness ; Cermet ; TN90 ; Series KGD

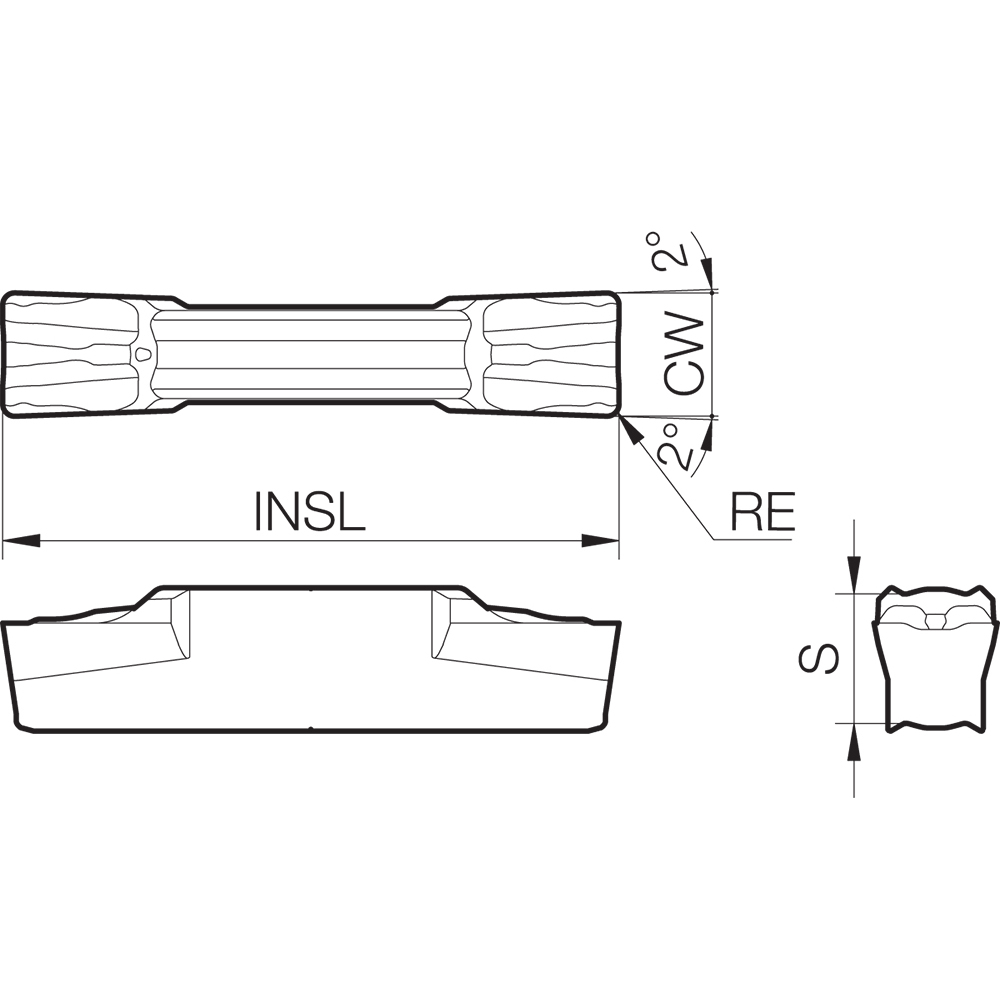

| Cutting Width (CW) | 3 mm | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.3 mm | Number of Cutting Edges | 2 |
| Cutting Depth Maximum (CDX) | 25 mm | Chip Breaker Type | GM |
| Insert Thickness (S) | 4.3 mm | Insert Style | GDFM |
| Insert Length (INSL) | 20 mm | Number of Teeth | 2 |
| Grade | TN90 | Mounting Style | Clamp |
| Cutting Edge Material | Cermet | Series/List # | KGD |
| Application | Face Grooving | Traversing | Coating Process | Uncoated |
| Applicable Material | | Steel | Stainless Steel | | Measurement Type | Metric |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.060
