GBA 32R200100R PR1625 Grade PVD Carbide, Indexable Grooving Insert
Grooving Insert; 2 mm CW × 2.5 mm Max Depth × 3.18 mm Thickness × 9.525 mm IC ; Carbide ; PR1625 ; MEGACOAT NANO ; Series GBA

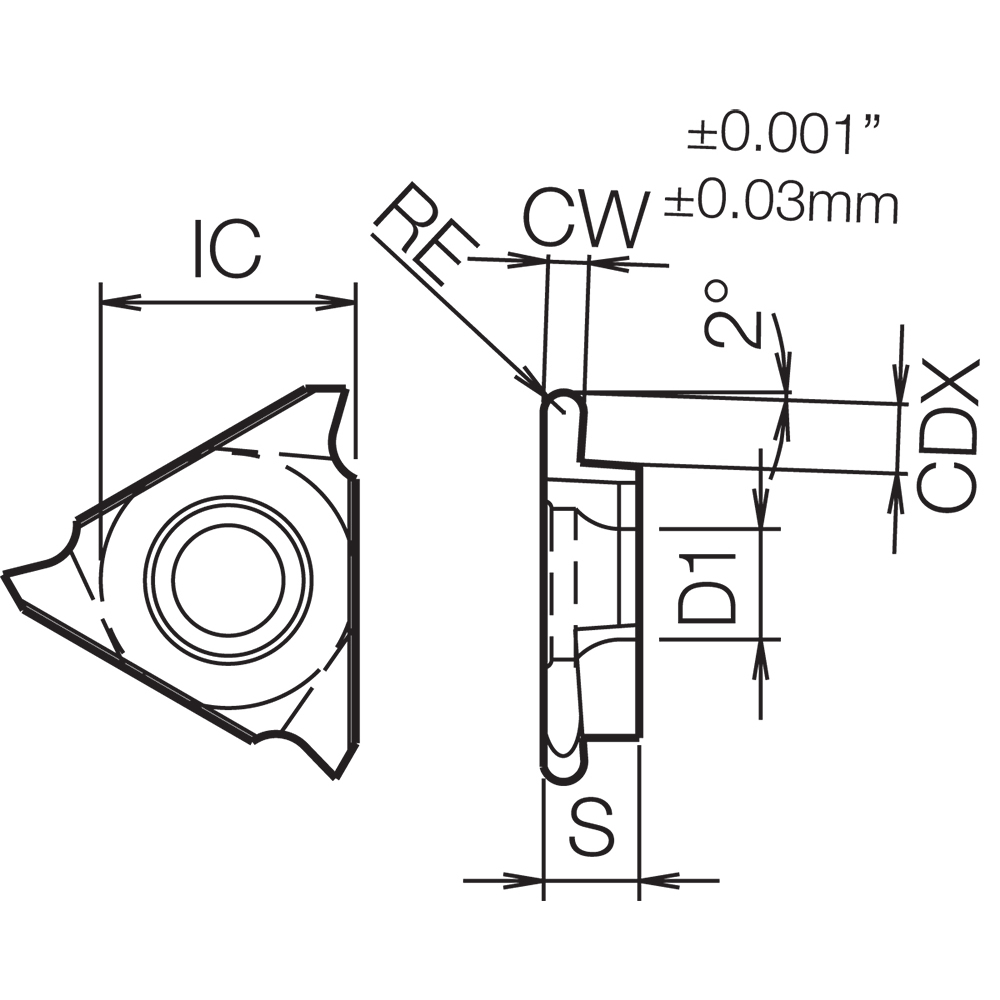

| Cutting Width (CW) | 2 mm | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 1 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 2.5 mm | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 3.18 mm | Chip Breaker Type | R |
| Inscribed Circle Diameter (IC) | 9.525 mm | Insert Style | GBA |
| Fixing Hole Diameter (D1) | 4.4 mm | Number of Teeth | 3 |
| Coating | MEGACOAT NANO | Mounting Style | Screw | Clamp |
| Grade | PR1625 | Series/List # | GBA |
| Cutting Edge Material | Carbide | Coating Process | PVD |
| Application | | Ext. Grooving | | Measurement Type | Metric |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.100
