GDMS 3020N030PH PR1535 Grade PVD Carbide, Indexable Grooving Insert
Grooving Insert; 3 mm CW × 25.5 mm Max Depth × 4.3 mm Thickness ; Carbide ; PR1535 ; MEGACOAT NANO ; Series KGD

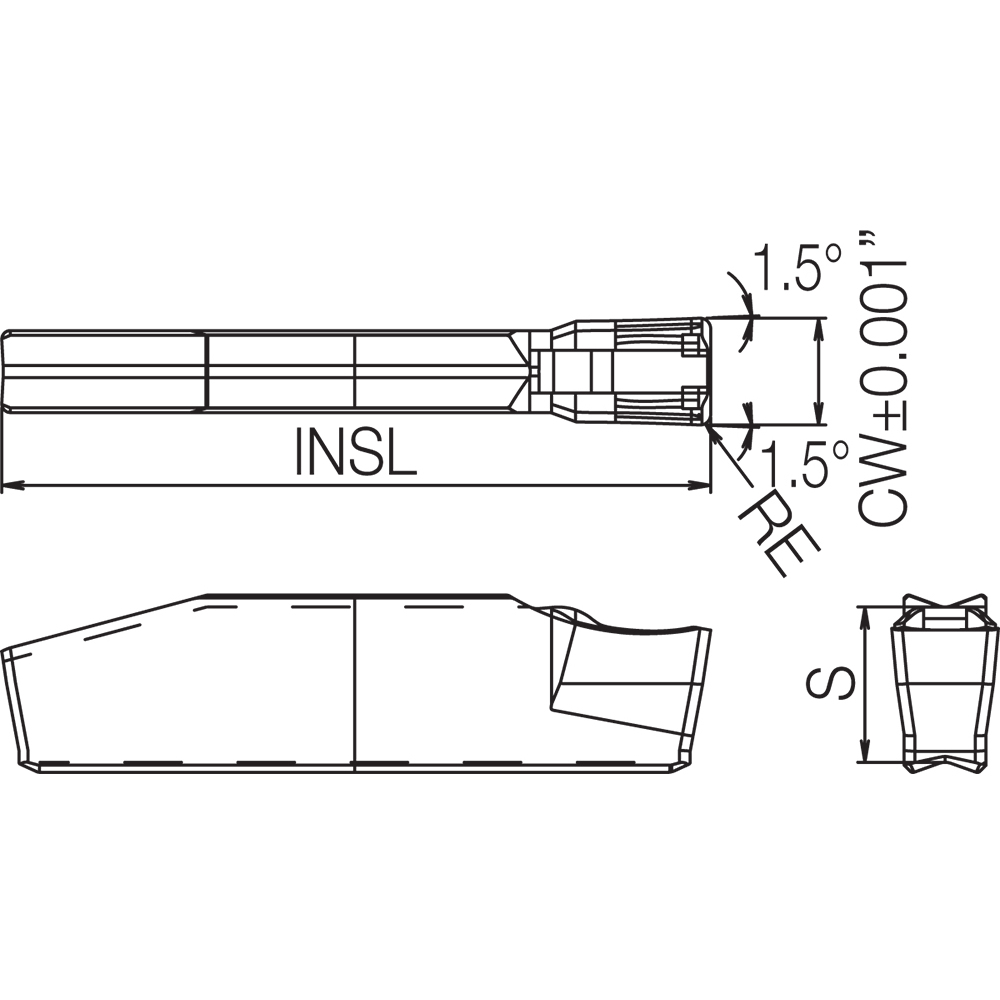

| Cutting Width (CW) | 3 mm | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.3 mm | Number of Cutting Edges | 1 |
| Cutting Depth Maximum (CDX) | 25.5 mm | Chip Breaker Type | PH |
| Insert Thickness (S) | 4.3 mm | Insert Style | GDMS |
| Insert Length (INSL) | 20 mm | Number of Teeth | 1 |
| Coating | MEGACOAT NANO | Mounting Style | Clamp |
| Grade | PR1535 | Series/List # | KGD |
| Cutting Edge Material | Carbide | Coating Process | PVD |
| Application | Cut-Off | External Grooving | Measurement Type | Metric |
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.094
