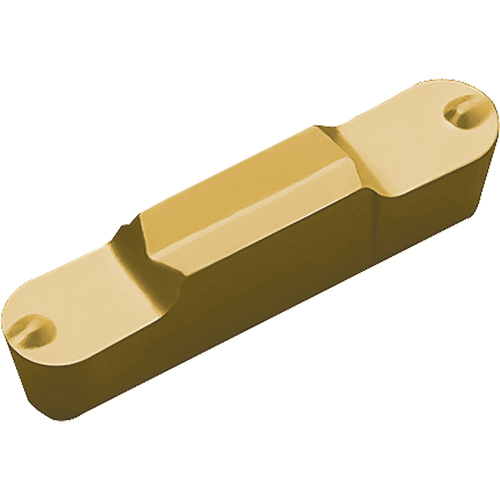

GMG 3020150R CR9025 Grade CVD Carbide, Indexable Grooving Insert
Grooving Insert; 3 mm CW × 20 mm Max Depth × 4.3 mm Thickness ; Carbide ; CR9025 ; | TiN | TiCN | ; Series KGM

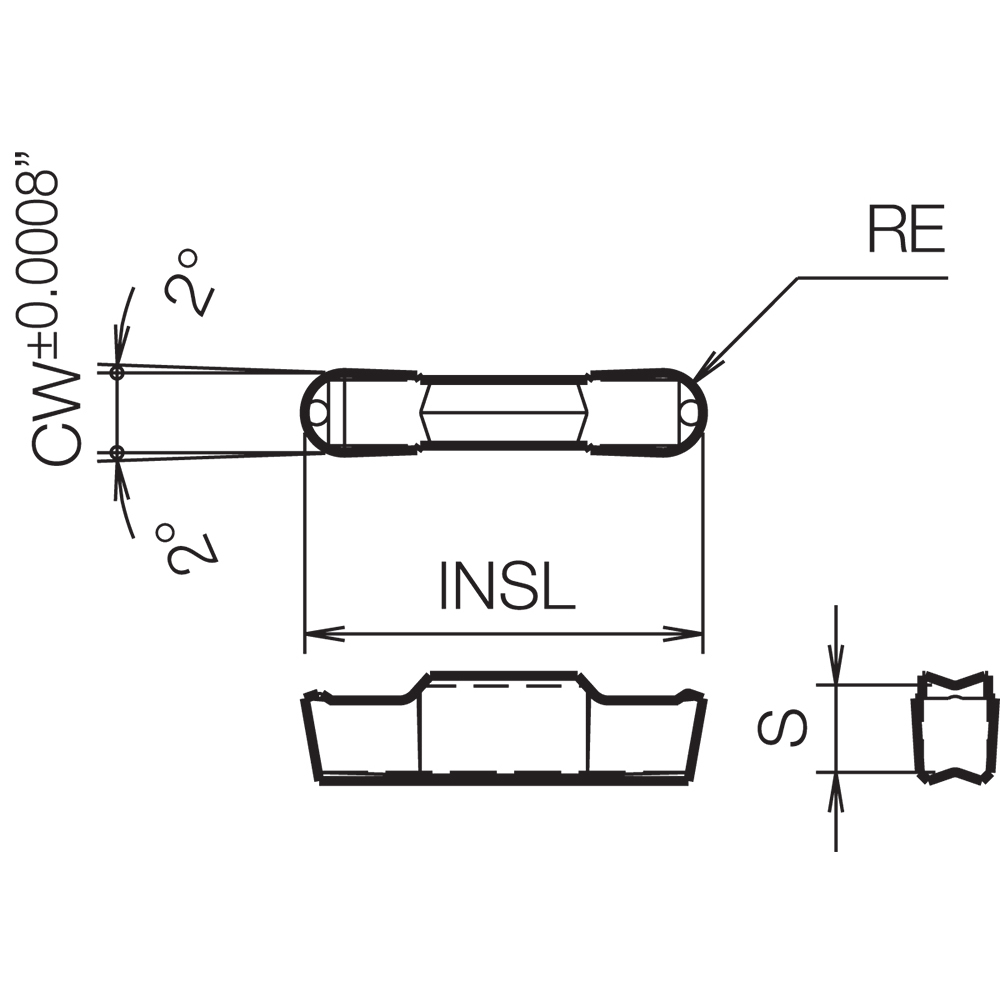

| Cutting Width (CW) | 3 mm | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 1.5 mm | Number of Cutting Edges | 2 |
| Cutting Depth Maximum (CDX) | 20 mm | Chip Breaker Type | R |
| Insert Thickness (S) | 4.3 mm | Insert Style | GMG |
| Insert Length (INSL) | 20 mm | Number of Teeth | 2 |
| Coating | | TiN | TiCN | | Mounting Style | Clamp |
| Grade | CR9025 | Series/List # | KGM |
| Cutting Edge Material | Carbide | Coating Process | CVD |
| Application | Copying | External Grooving | Face Grooving | Measurement Type | Metric |
| Applicable Material | | Steel | |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.095
