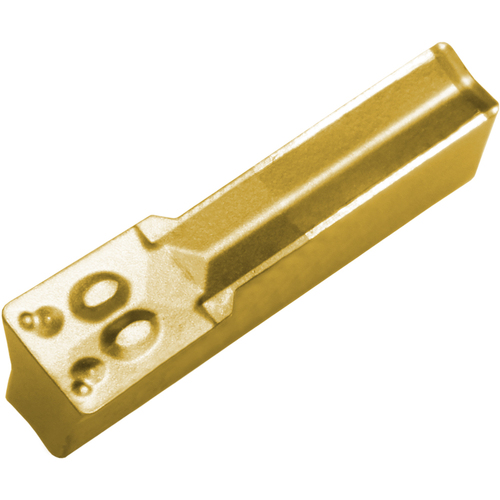

FMM 5004 CR9025 Grade CVD Carbide, Indexable Grooving Insert
Grooving Insert; 5 mm CW × 32 mm Max Depth × 3.5 mm Thickness ; Carbide ; CR9025 ; | TiN | TiCN | ; Series KFMS
| Cutting Width (CW) | 5 mm | Applicable Material | | Steel | |
| Corner Radius (RE) | 0.4 mm | Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 32 mm | Number of Cutting Edges | 1 |
| Insert Thickness (S) | 3.5 mm | Insert Style | FMM |
| Insert Length (INSL) | 12 mm | Number of Teeth | 1 |
| Coating | | TiN | TiCN | | Mounting Style | Clamp |
| Grade | CR9025 | Series/List # | KFMS |
| Cutting Edge Material | Carbide | Coating Process | CVD |
| Application | Face Grooving | Measurement Type | Metric |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.088
