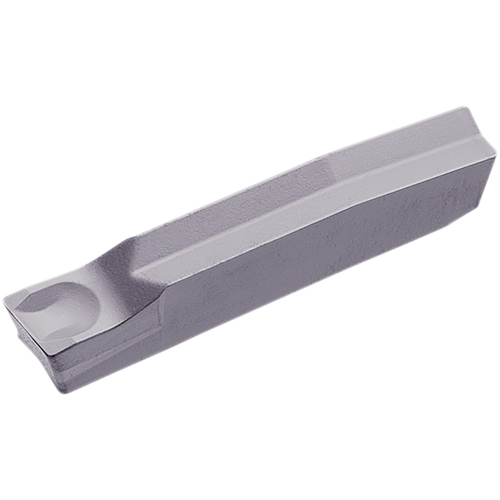

GM R4TK8D PR930 Grade PVD Carbide, Indexable Grooving Insert

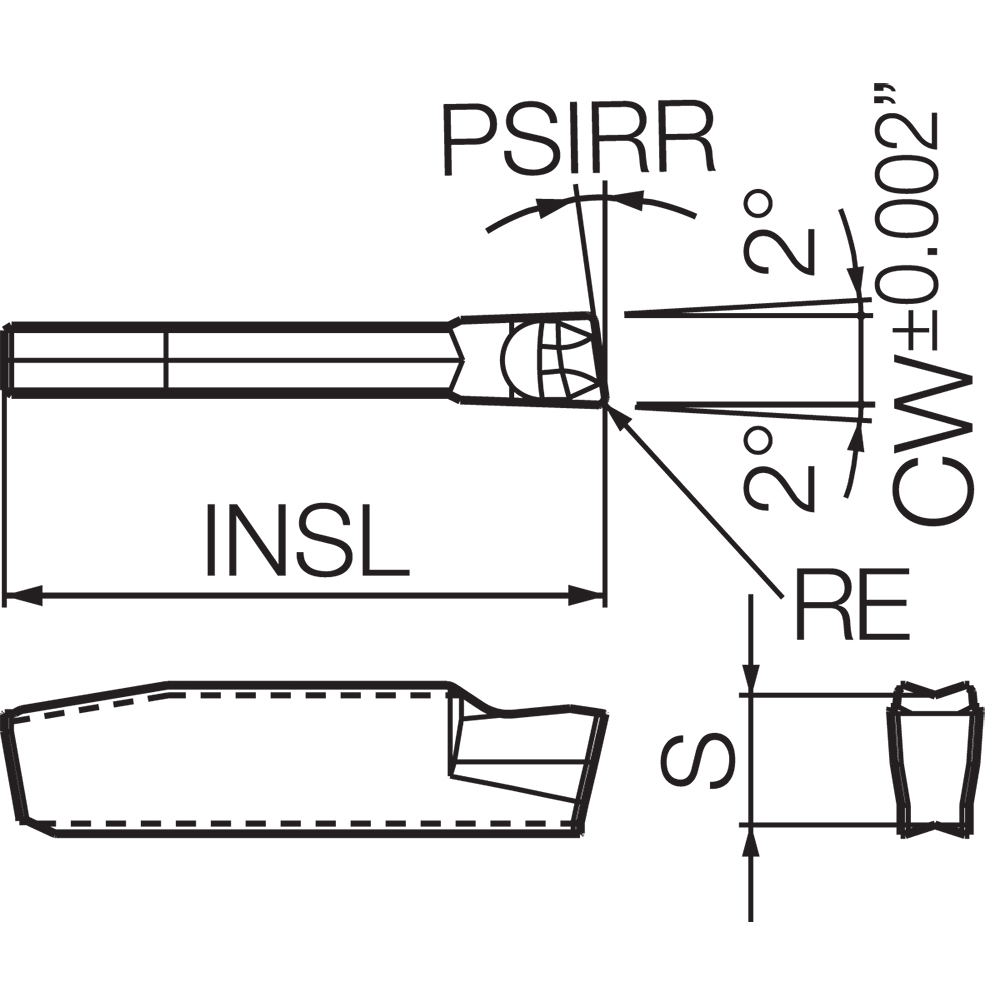

Grooving Insert; 4 mm CW × 25 mm Max Depth × 4.3 mm Thickness ; Carbide ; PR930 ; TiCN ; Series KGM
| Cutting Width (CW) | 4 mm | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.3 mm | Number of Cutting Edges | 1 |
| Cutting Depth Maximum (CDX) | 25 mm | Chip Breaker Type | TK |
| Insert Thickness (S) | 4.3 mm | Insert Style | GM |
| Insert Length (INSL) | 20 mm | Number of Teeth | 1 |
| Coating | TiCN | Mounting Style | Clamp |
| Grade | PR930 | Series/List # | KGM |
| Cutting Edge Material | Carbide | Coating Process | PVD |
| Application | Cut-Off | External Deep Grooving | External Grooving | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.160
