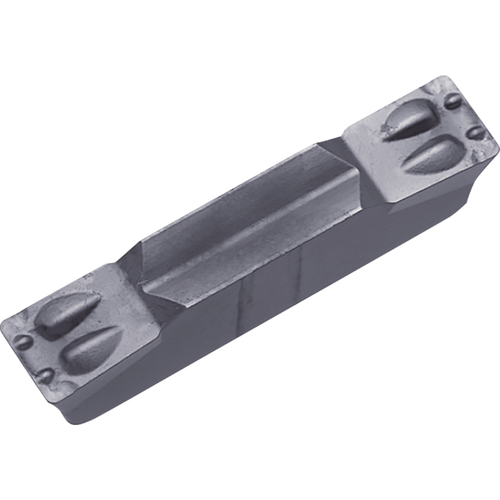

GMM 402004V PR930 Grade PVD Carbide, Indexable Grooving Insert
Grooving Insert; GMM 402004V PVD CBD PR930 4 mm CW × 11 mm Max Depth × 4.3 mm Thickness ; Carbide ; TiCN

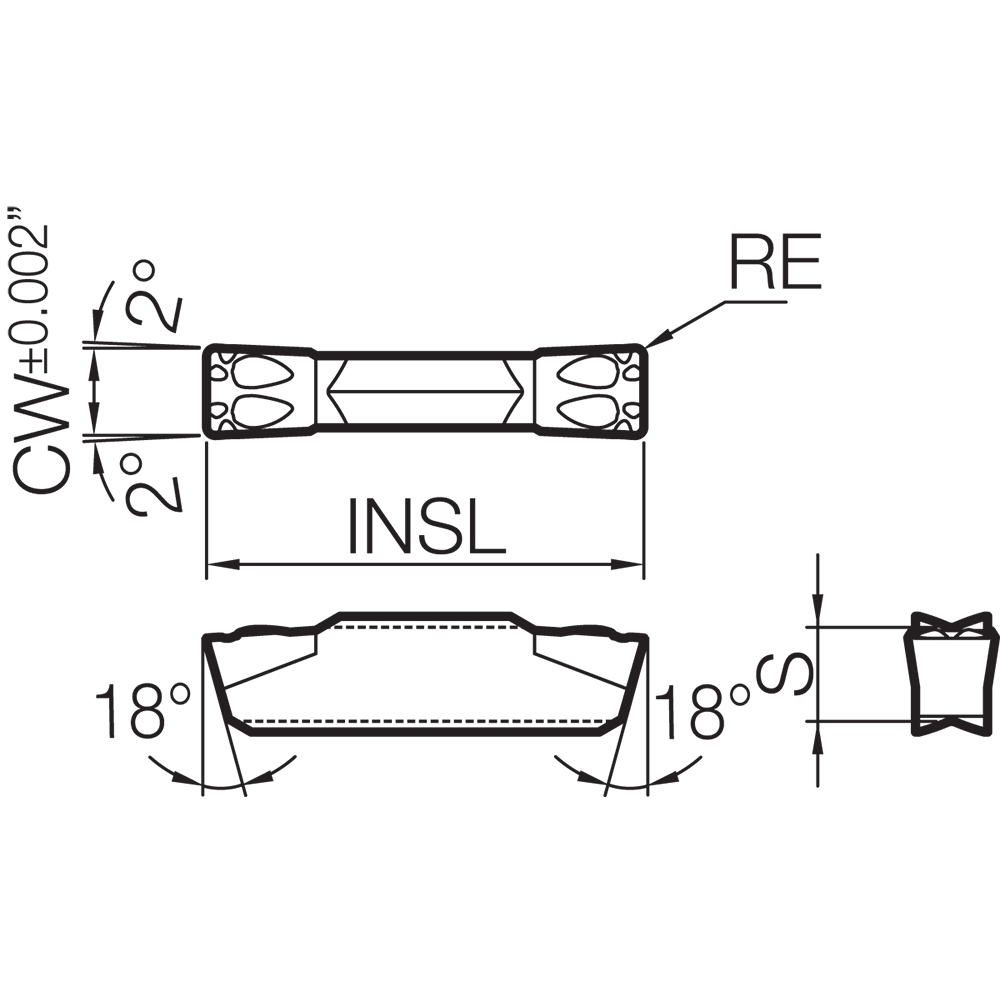

| Cutting Width (CW) | 4 mm | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.4 mm | Number of Cutting Edges | 2 |
| Cutting Depth Maximum (CDX) | 11 mm | Chip Breaker Type | V |
| Insert Thickness (S) | 4.3 mm | Insert Style | GMM |
| Insert Length (INSL) | 20 mm | Number of Teeth | 2 |
| Coating | TiCN | Mounting Style | Clamp |
| Grade | PR930 | Series/List # | KGM |
| Cutting Edge Material | Carbide | Coating Process | PVD |
| Application | Internal Grooving | Measurement Type | Metric |
| Applicable Material | Steel | Stainless Steel |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.123
