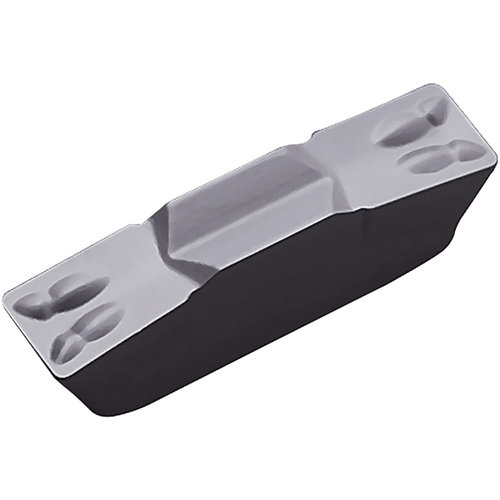

GMM 301404 PR930 Grade PVD Carbide, Indexable Grooving Insert
Grooving Insert; GMM 301404 PVD CBD PR930 3 mm CW × 4.8 mm Max Depth × 4.3 mm Thickness ; Carbide ; TiCN

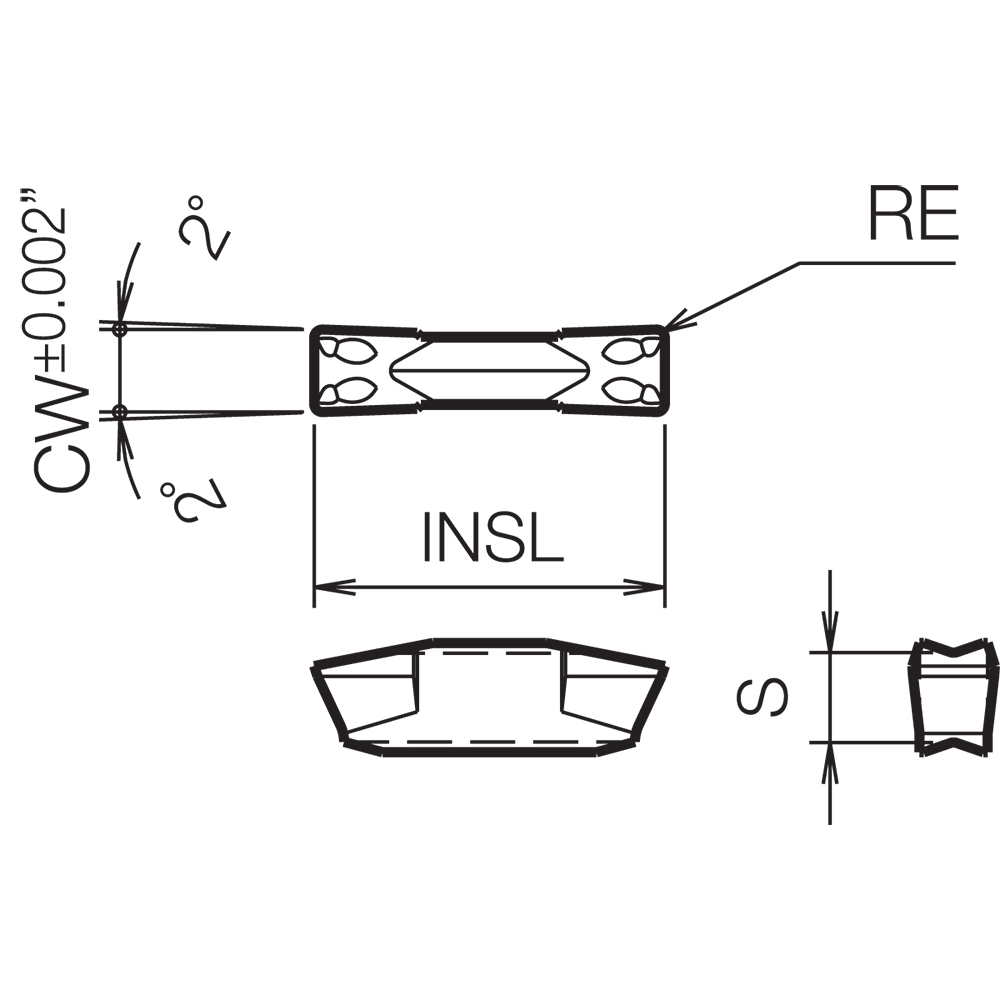

| Cutting Width (CW) | 3 mm | Applicable Material | Steel | Stainless Steel |
| Corner Radius (RE) | 0.4 mm | Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 4.8 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 4.3 mm | Insert Style | GMM |
| Insert Length (INSL) | 14 mm | Number of Teeth | 2 |
| Coating | TiCN | Mounting Style | Clamp |
| Grade | PR930 | Series/List # | KGM |
| Cutting Edge Material | Carbide | Coating Process | PVD |
| Application | | Ext. Grooving | Traversing | | Measurement Type | Metric |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.072
Related Documentation
