GMM 2020LMT15D PR930 Grade PVD Carbide, Indexable Grooving Insert

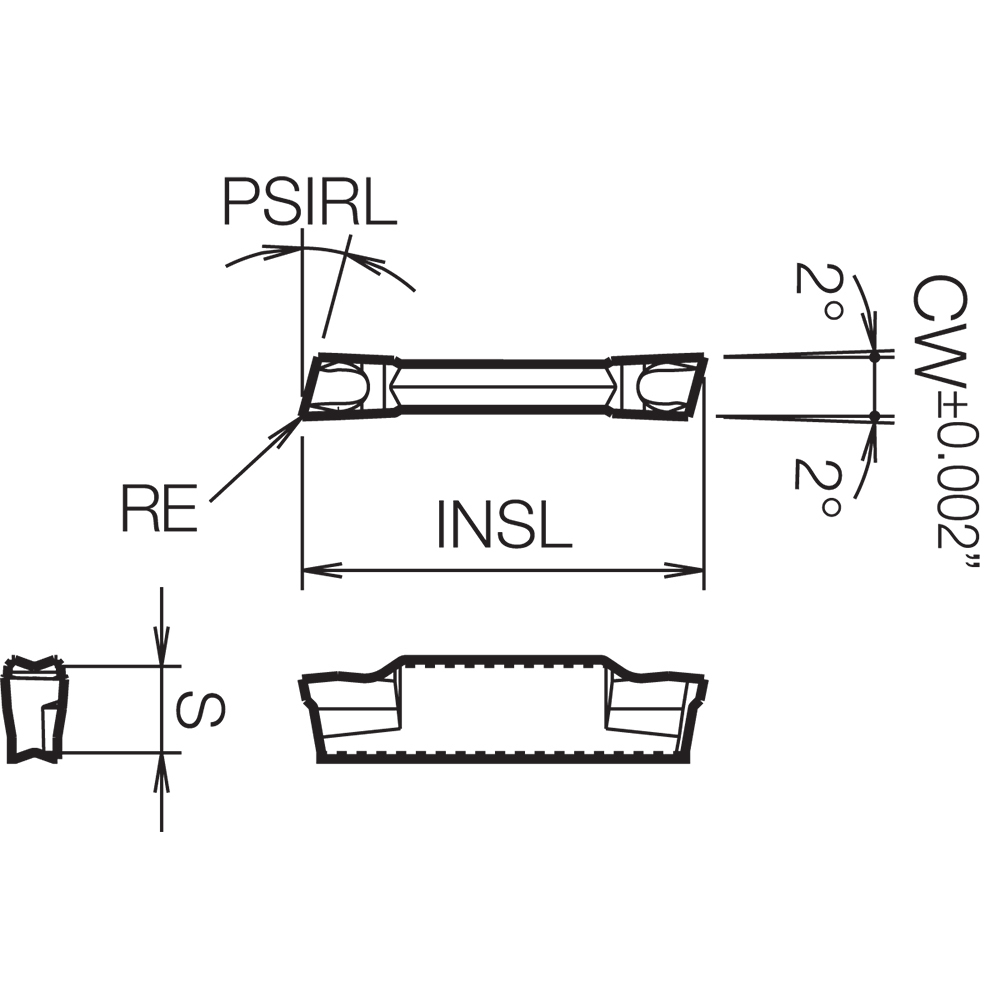

Grooving Insert; 2 mm CW × 17 mm Max Depth × 4.3 mm Thickness ; Carbide ; PR930 ; TiCN ; Series KGM
| Cutting Width (CW) | 2 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 17 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 4.3 mm | Chip Breaker Type | MT |
| Insert Length (INSL) | 20 mm | Insert Style | GMM |
| Coating | TiCN | Number of Teeth | 2 |
| Grade | PR930 | Mounting Style | Clamp |
| Cutting Edge Material | Carbide | Series/List # | KGM |
| Application | Cut-Off | External Deep Grooving | External Grooving | Coating Process | PVD |
| Applicable Material | | Steel | Stainless Steel | | Measurement Type | Metric |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.077
