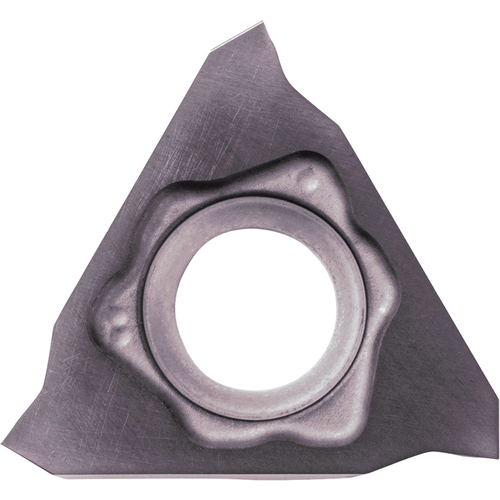

GBF 32R075005GL PR1215 Grade PVD Carbide, Indexable Grooving Insert
Grooving Insert; 0.75 mm CW × 2 mm Max Depth × 3.18 mm Thickness × 9.525 mm IC ; Carbide ; PR1215 ; MEGACOAT ; Series GBF

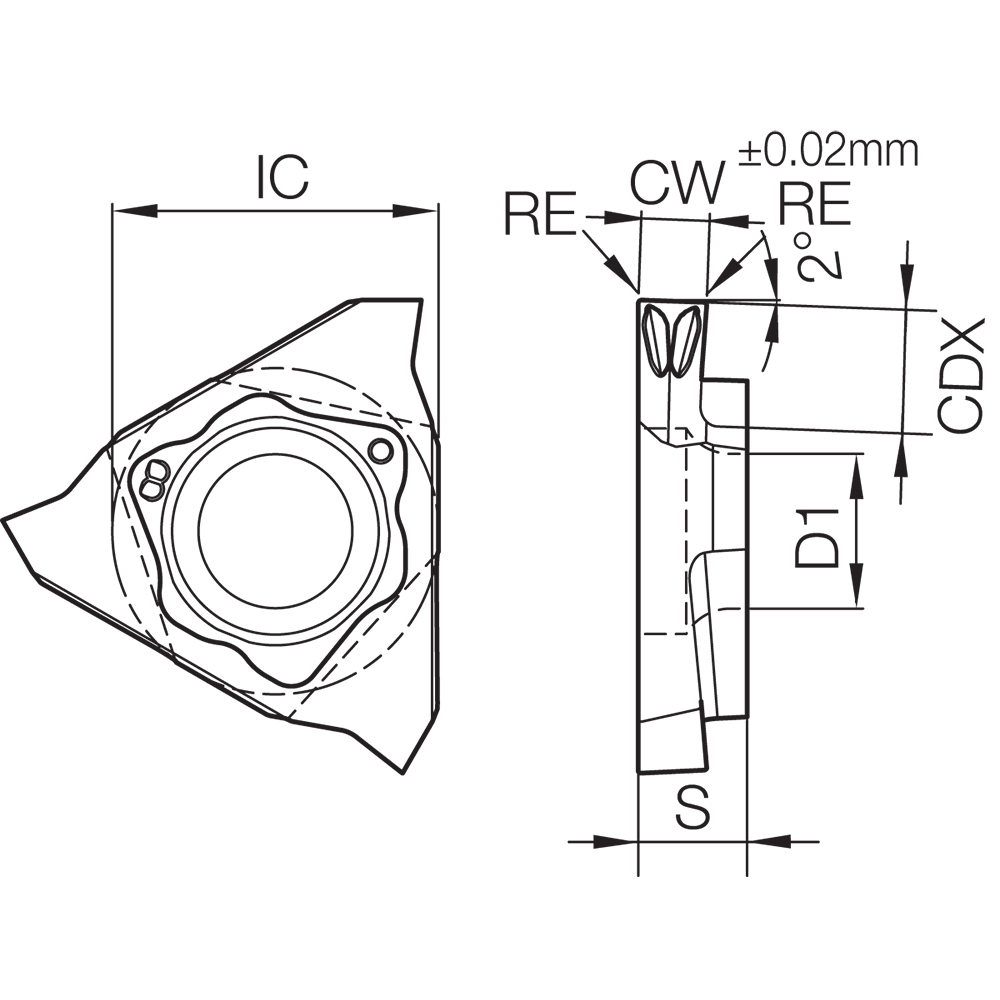

| Cutting Width (CW) | 0.75 mm | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 0.05 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 2 mm | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 3.18 mm | Chip Breaker Type | GL |
| Inscribed Circle Diameter (IC) | 9.525 mm | Insert Style | GBF |
| Fixing Hole Diameter (D1) | 4.4 mm | Number of Teeth | 3 |
| Coating | MEGACOAT | Mounting Style | Screw | Clamp |
| Grade | PR1215 | Series/List # | GBF |
| Cutting Edge Material | Carbide | Coating Process | PVD |
| Application | | Ext. Grooving | Traversing | | Measurement Type | Metric |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.143
