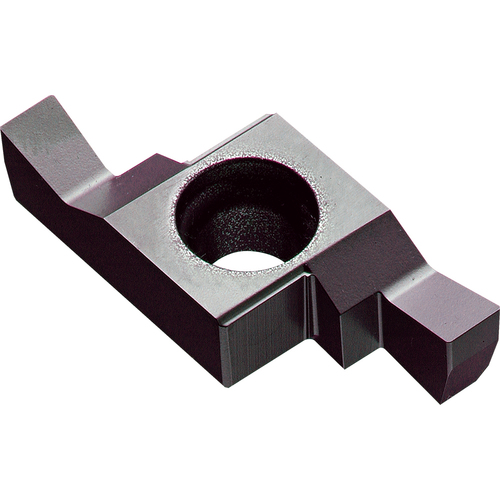

GE L170010D PR1225 Grade PVD Carbide, Indexable Grooving Insert
Grooving Insert; 1.7 mm CW × 3 mm Max Depth × 5.05 mm Thickness ; Carbide ; PR1225 ; MEGACOAT ; Series SIGE

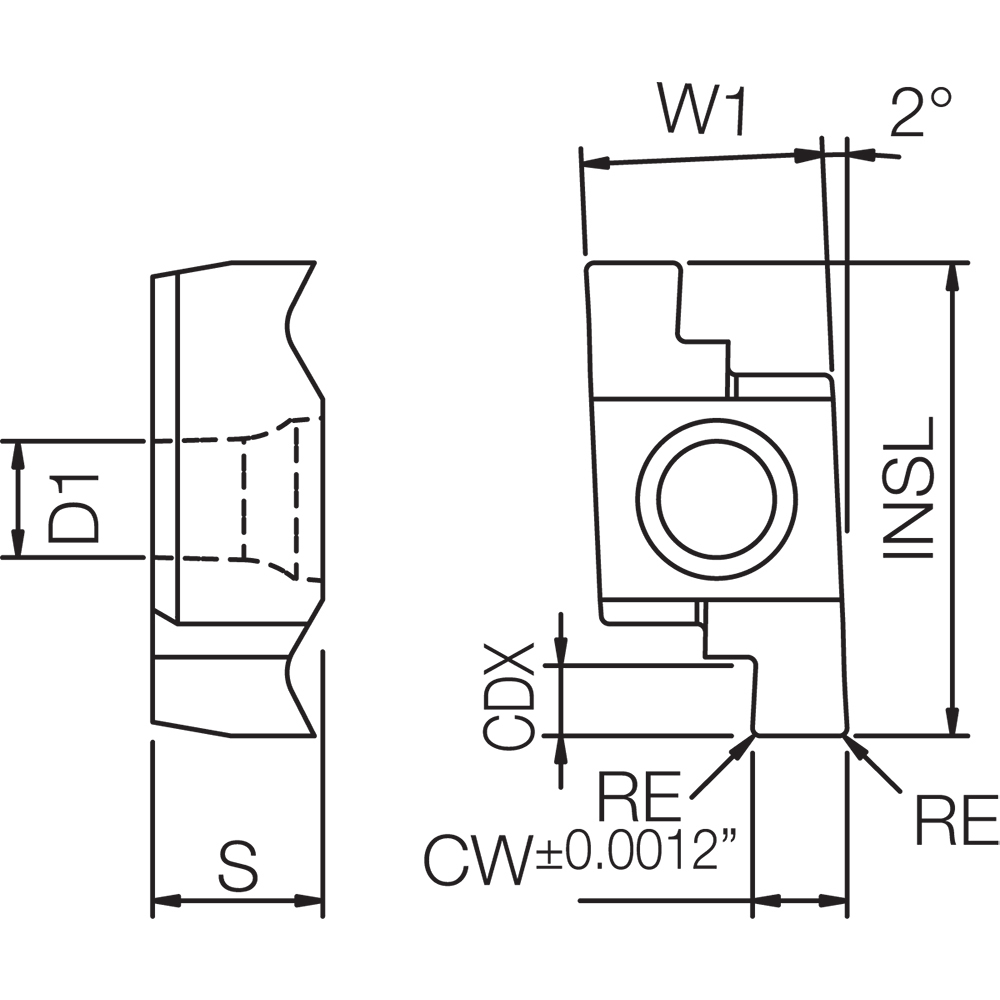

| Cutting Width (CW) | 1.7 mm | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 0.1 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 3 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 5.05 mm | Chip Breaker Type | D |
| Insert Length (INSL) | 16.44 mm | Insert Style | GE |
| Fixing Hole Diameter (D1) | 3.4 mm | Number of Teeth | 2 |
| Insert Rake Angle (GAN) | 9 Degrees | Mounting Style | Clamp |
| Coating | MEGACOAT | Series/List # | SIGE |
| Grade | PR1225 | Coating Process | PVD |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Application | Internal Grooving | Insert Width (W1) | 6.8 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.115
